Lenco 16″ x 12″ Standard Performance Trim Tab Kit w/o Switch Kit 12V

SKU: 29256

Manufacturer: Lenco Marine

Manufacturer Part Number: 15039-101

UPC Code: 874847004619

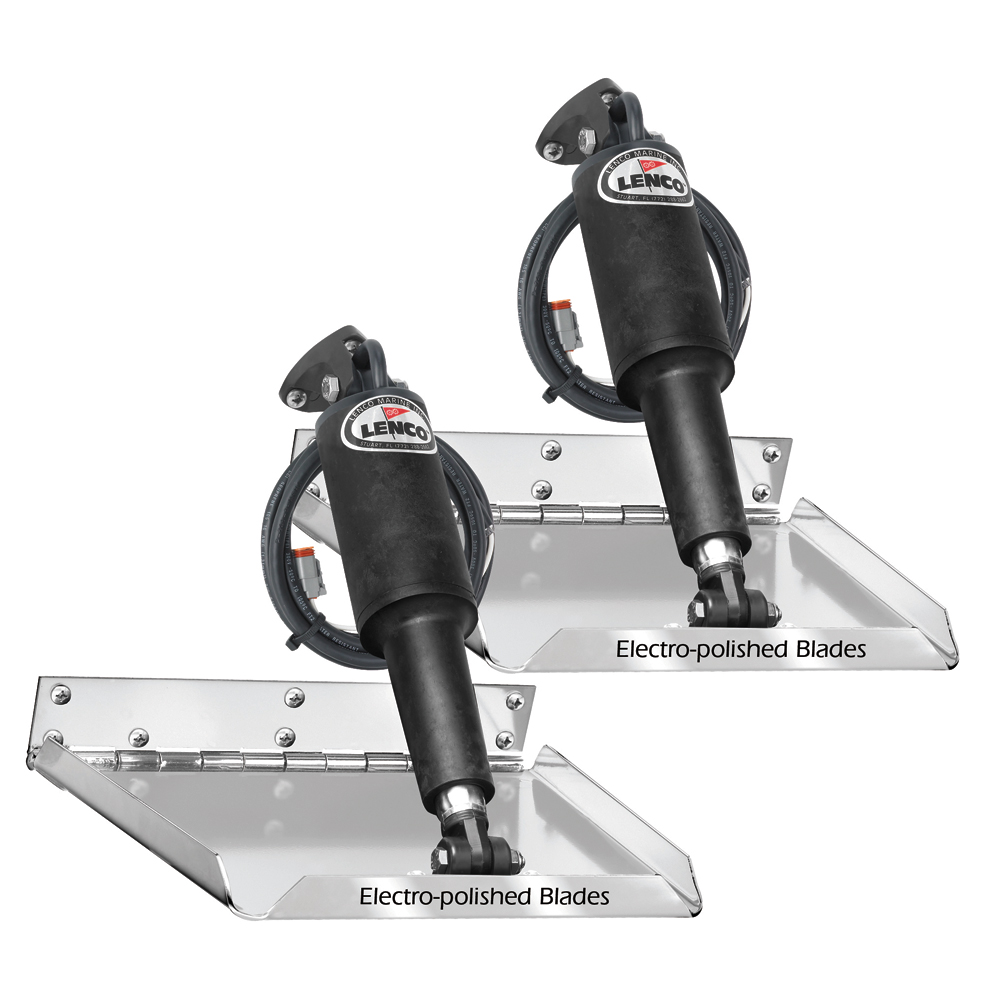

16″ x 12″ Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4″ diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge – 304 SS with 1″ turned up edges (the 16″ x 12″ and the 18″ x 14″ have an 85 degree inside taper) and 1/4″ diameter hinge pin. Kit includes Standard Actuators with 5/16″ SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
• 2 each of #15054-001 actuators with 6′ lead and Deutsch plugs
• 2 each of #30133-103 20′ actuator extension wiring harnesses
• 2 each of #15085-001 (#116) upper mounting bracket with gland seal
• 2 each of #50014-001 (#119) lower mounting bracket
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 19′ to 34′
• Length of Tab: 16″
• Width of Tab: 12″
• Minimum Transom Height: 11″
• Blades: 12 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt
