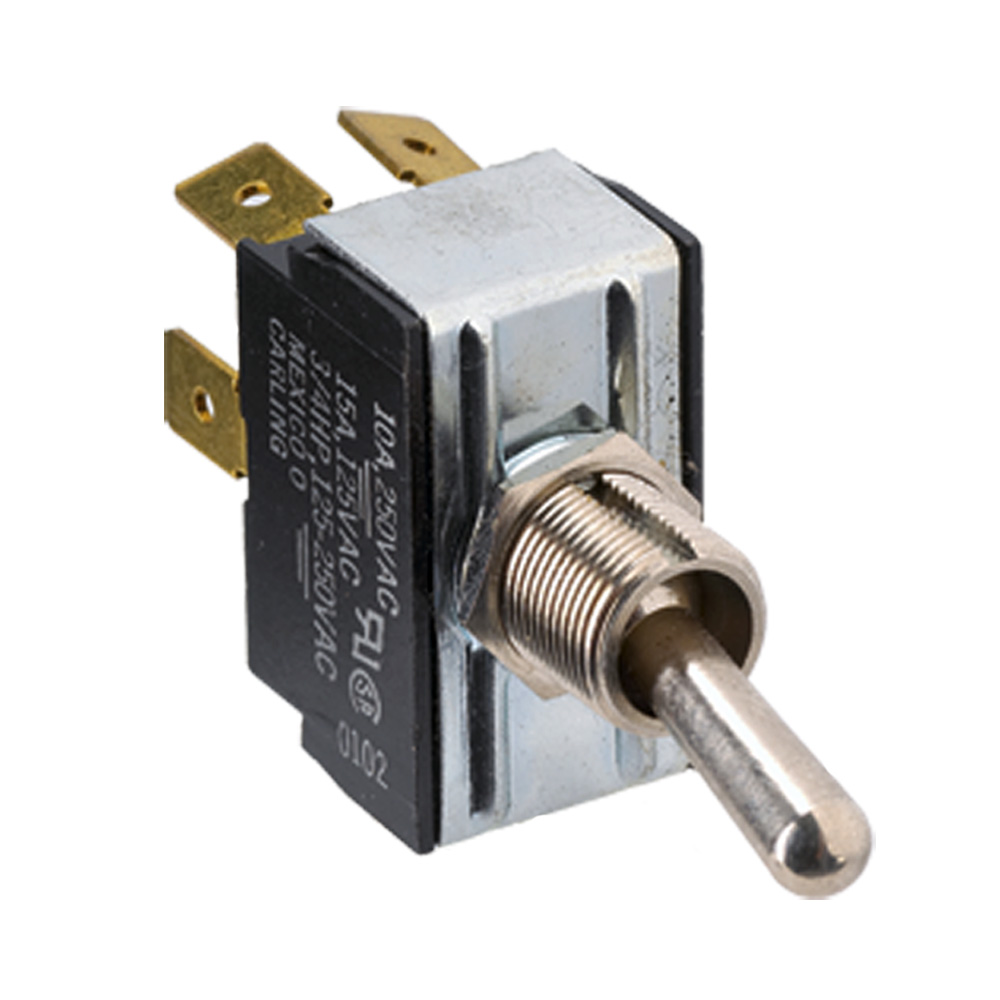

Paneltronics DPDT ON/OFF/ON Metal Bat Toggle Switch

SKU: 29793

Manufacturer: Paneltronics

Manufacturer Part Number: 001-011

UPC Code: 602290100356

Metal Bat Handle Toggle Switches

• Single or Double pole, and maintaining or momentary configurations are available

• Rated at 10A 250VAC, 15A 125VAC, and 15A 30VDC (ABYC E-11.14.1.1)

• AC units are UL recognized for use in the USA and CSA certified for use in Canada

• Optional silicone rubber boots provide a watertight panel seal

• 1/4″ male tab terminals are standard

• Hole plugs 1/2″ diameter black (P/N 016-004) and white (P/N 016-020)
