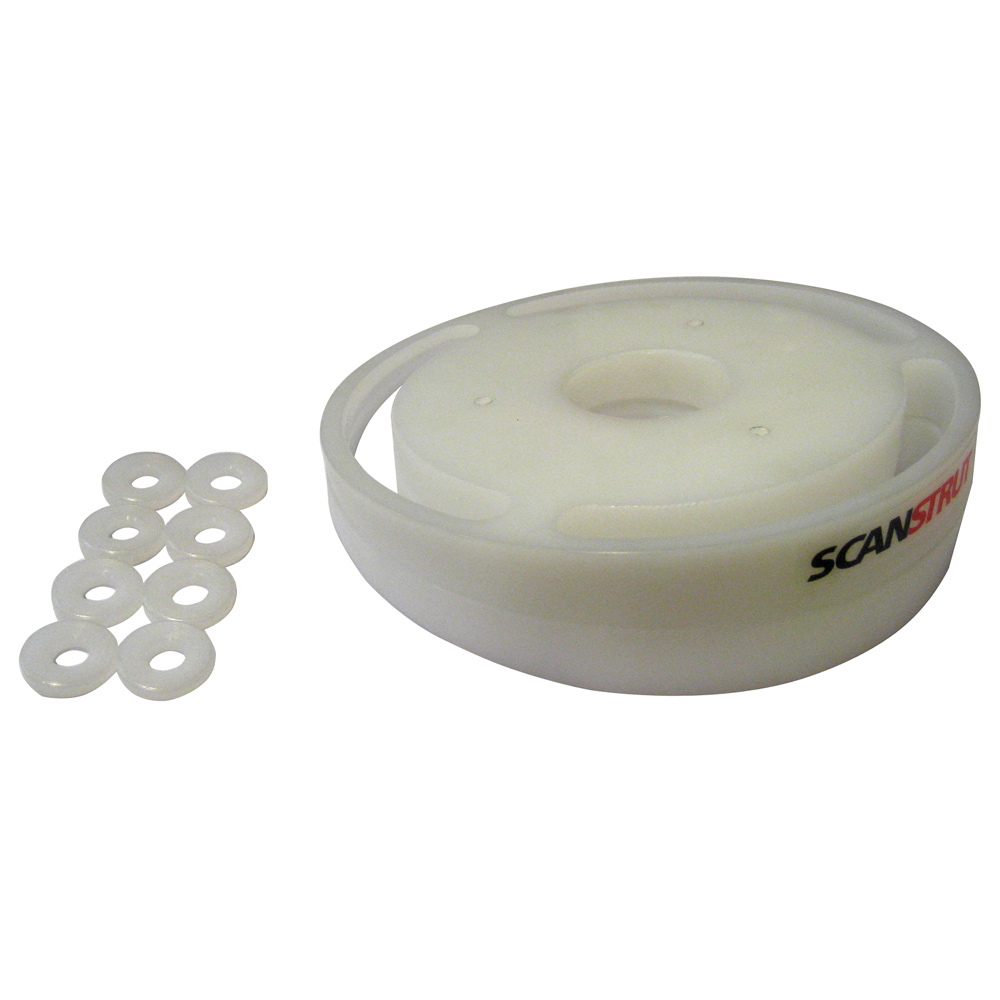

Scanstrut SC50 Satcom Base Mount, Adjustable Wedge

SKU: 28048

Manufacturer: Scanstrut

Manufacturer Part Number: SC50

UPC Code: 5060114790506

Product Code SC50

Two counter rotating angled discs compensate for slopes on radar arches and cabin roofs. Provides a horizontal mounting surface for satcom domes on any slope angled from 0 12 degrees.

Use only in conjunction with the Scanstrut SC45 and SC65 satcom adaptor ranges.

Supplied complete with watertight deck seal. Also four pairs of 6° angled washers to enable perpendicular fastening through SC50 on any slope from 0 -12 degrees.

Target Market
Power boats requiring level installation of satcom domes.

Technical information

Materials Discs and washers machined from white King Starboard®, a marine grade polymer. Expanded polyethylene base seal.

Size 200mm/7.8" diameter

Satcom compatibility Suitable for use with Scanstrut SC45 and SC65 adaptor plates, allowing installation of KVH G4 and G6 domes and Simrad TV 45 and TV 65 domes.
