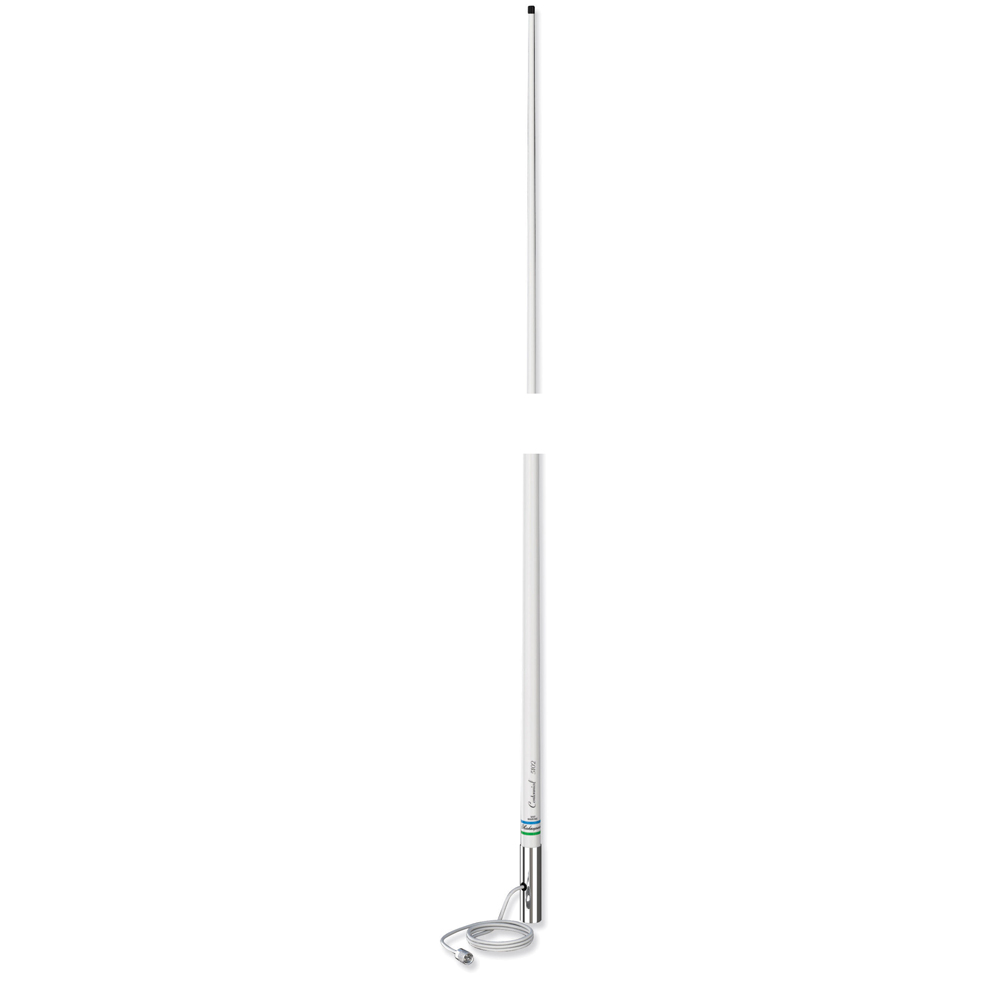

Shakespeare 5102 8′ VHF Antenna
Original price was: $162.95.$91.87Current price is: $91.87.
Shakespeare CENTENNIAL™ Style 5102
8′ LENGTH, VHF Marine 6dB
COLLINEAR PHASED 5/8-WAVE
Shakespeare started its second century of innovation with the new Centennial™ antennas that bring the most wanted high-end features to mid-priced antennas. The Style 5102 carries on that tradition. Its a 6dB collinear phased 5/8-wave antenna of 8-foot nominal length. The Centennial antennas have a high-gloss, polyurethane finish that wont turn yellow in the sun. Superb value and performance.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 15′ RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine Radio |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Gain: | 6 dB |
| Impedance: | (Ohms): 50 |
| Max Input (Watts): | 50 |
| DC Ground: | YES |
| Termination: | 15′ RG-58 cable and a PL-259 connector |
| Height (feet): | 8 |
| Polarization: | Vertical |
| Radiation pattern: | Omni – Directional |
Out of stock
Fast Shipping
Timely delivery with all orders
30 Day Return
Return accepted on selected items
24/7 Help
Help is just around the corner.
SKU: 13727
Manufacturer: Shakespeare
Manufacturer Part Number: 5102
UPC Code: 719441100582
Shakespeare CENTENNIAL™ Style 5102
8′ LENGTH, VHF Marine 6dB
COLLINEAR PHASED 5/8-WAVE
Shakespeare started its second century of innovation with the new Centennial™ antennas that bring the most wanted high-end features to mid-priced antennas. The Style 5102 carries on that tradition. Its a 6dB collinear phased 5/8-wave antenna of 8-foot nominal length. The Centennial antennas have a high-gloss, polyurethane finish that wont turn yellow in the sun. Superb value and performance.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 15′ RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine Radio |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Gain: | 6 dB |
| Impedance: | (Ohms): 50 |
| Max Input (Watts): | 50 |
| DC Ground: | YES |
| Termination: | 15′ RG-58 cable and a PL-259 connector |
| Height (feet): | 8 |
| Polarization: | Vertical |
| Radiation pattern: | Omni – Directional |
| Weight | 3.9 lbs |
|---|
