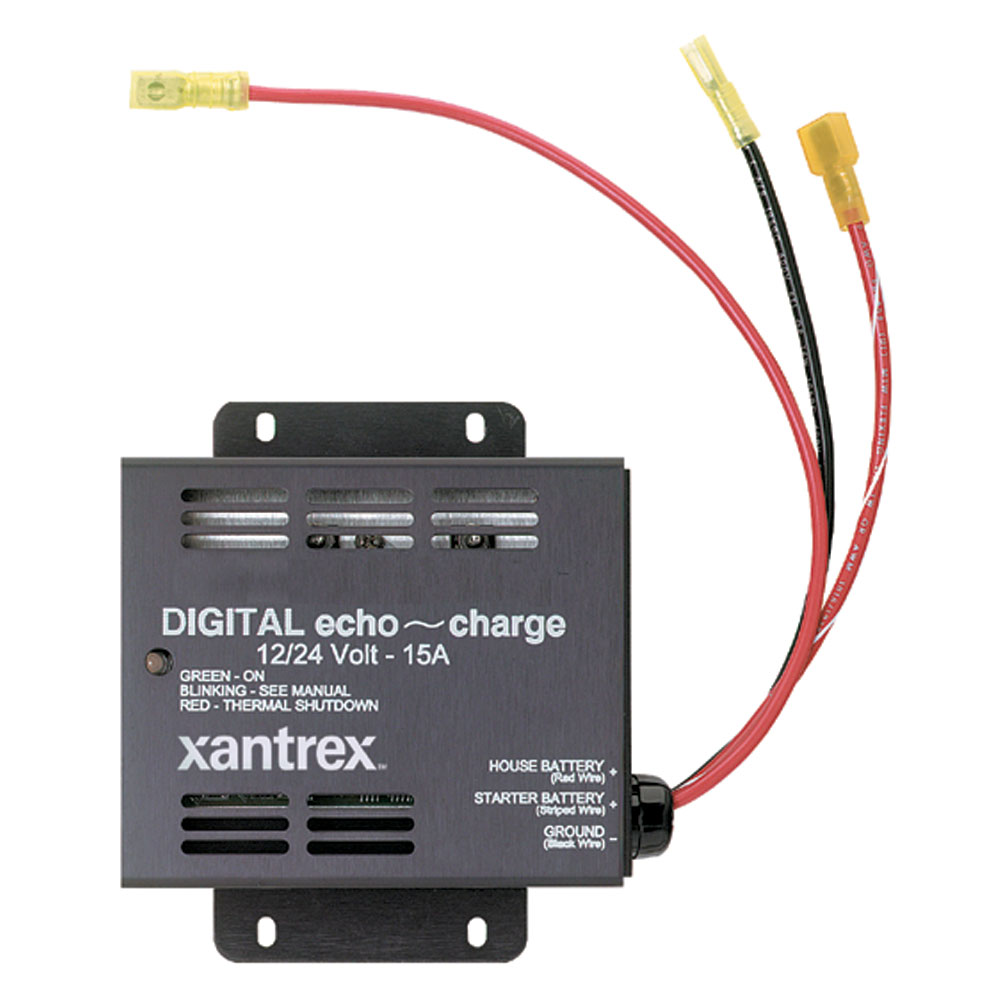

Xantrex Heart Echo Charge Charging Panel

SKU: 14258

Manufacturer: Xantrex

Manufacturer Part Number: 82-0123-01

UPC Code: 647912105722

Convenient Dual Battery Bank Charging

Xantrex digital echocharge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echocharge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echocharge is limited to 15 amps.

Product Features

• 15 A maximum charge current

• Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)

• Automatically switches on/off without affecting the in-house battery bank or over-charging

• Utilizes excess current from the primary charging source

• Built-in thermal and over-current circuits

• Reverse polarity protection

• Easy three wire installation
