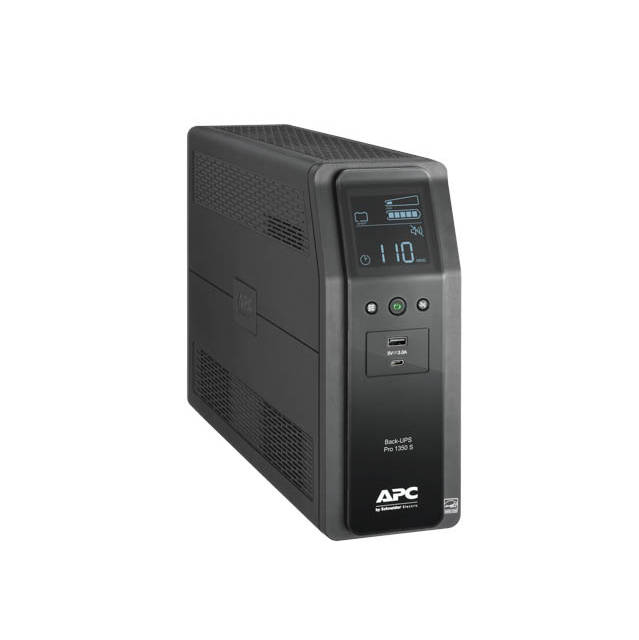

APC Back UPS Pro BR1350MS 10-Outlet 810W/1350VA LCD UPS System

Specifications

• Mfr Part Number: BR1350MS
• Output:
  • Output Power Capacity: 810Watts / 1.35 kVA
  • Max Configurable Power: 810Watts / 1.35 kVA
  • Nominal Output Voltage: 120 V
  • Output Frequency (sync to mains): 60Hz +/- 3 Hz
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 4x NEMA 5-15R (selector_surgetitle); 6x NEMA 5-15R (Battery Backup)
  • Transfer Time: 8ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 60 Hz +/-3Hz
  • Input Connections: NEMA L5-15P
  • Cord Length: 6 feet / 1.83 meters
  • Input voltage range for main operations: 88 ~ 147 V
  • Number of Power Cords: 1
  • Maximum Input Current: 12.0A
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte – leakproof
  • Included Battery Modules: 1
  • Typical recharge time: 16 hours
  • Expected Battery Life (years): 3 ~ 5
  • RBC Quantity: 2
• Communications & Management:
  • Interface Ports: USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm
• Surge Protection and Filtering:
  • Surge energy rating: 1080 Joules
  • Data Line Protection: RJ45 10/100/1000 Base-T Ethernet protection, Co-axial Video / Cable protection
  • Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through; zero clamping response time; instantaneous
• Audible noise at 1 meter from surface of unit: 45.0 dBA
• Approvals: FCC Part 15 Class B, NOM, TUV C-US certified
• Dimensions (WxDxH): 3.94 x 14.49 x 10.24 inch / 100.0 x 368.0 x 260.0 mm
• Weight: 25.79 lbs / 11.7 kg
