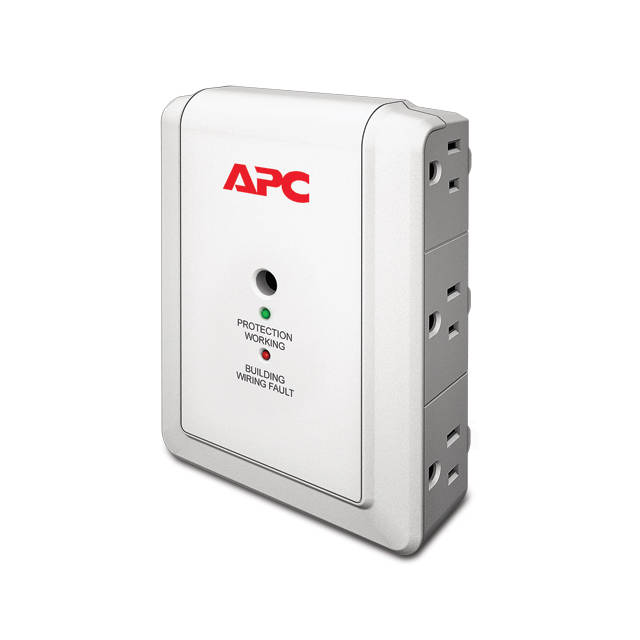

APC P6W Essential SurgeArrest 6-Outlet 120V Wall Mount

Specifications

• Mfr Part Number: P6W
• Features:
• EMI and RFI noise filtering
• IEEE let-through rating and UL 1449 compliance
• Lightning and Surge Protection
• Noise Filtering
• Catastrophic Event Protection
• Fail Safe Mode
• Protection Working Indicator
• Building Wiring Fault Indicator
• Output:
• Number of Outlets: 6
• Receptacle Style: NEMA 5-15R
• Input:
• Nominal Input Voltage: 120 V
• Input Frequency: 50/60Hz ± 5Hz (auto sensing)
• Input Connections: NEMA 5-15P
• Maximum Line Current per phase: 15A
• Maximum Input Current: 15A
• Input Breaker Capacity: 15.0 A
• Surge Protection and Filtering:
• Surge energy rating: 1080 Joules
• EMI/RFI Noise rejection (100KHz ~ 10MHz): 40 dB
• Peak Current Normal Mode: 60 (/PH) kAmps
• Peak Current Common Mode: 72 KAmps
• NM Surge Response Time (ns): 1 ns
• Let Through Voltage Rating: < 500
• Conformance:
• Regulatory Approvals: ETL
• UL 1449 TVSS Rating: 400 V
• Color: Beige
• Dimensions (WxDxH): 38.0 x 140.0 x 102.0 mm
• Weight: 0.20 kg
