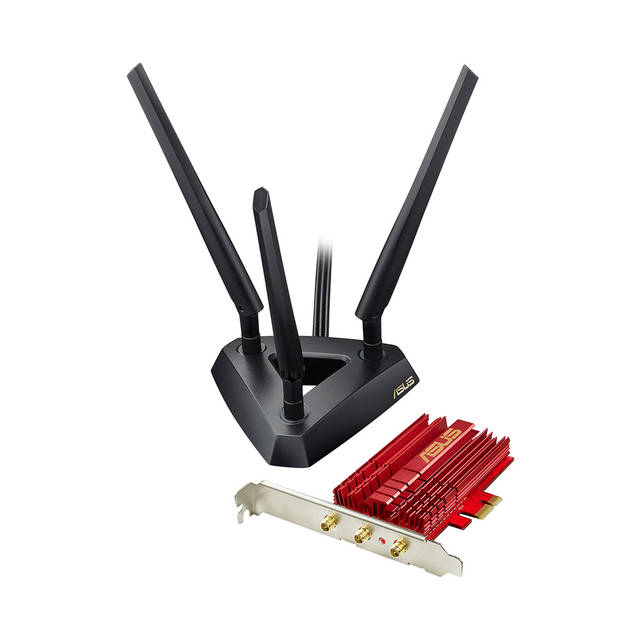

Asus PCE-AC68 Dual-Band Wireless-AC1900 PCI-Express Adapter

Specifications

• Mfr Part Number: PCE-AC68
• Features:
  • 5th generation 802.11ac chipset gives you dual-band, 2.4GHz/5GHz for up to super-fast 1.30Gbps
  • Flexible extended antenna placement helps you pinpoint the best reception in your environment
  • Instant Wi-Fi upgrade for your desktop – no more messy Ethernet cables needed
  • High-power design clears up dead zones with 150% greater coverage
  • Custom heatsink dissipates heat for more stable and reliable non-stop operation
• Standards: IEEE 802.11a/b/g/n/ac
• Interface: PCI-Express
• Antenna: 3x R SMA Antennas
• Operating Frequency: 2.4GHz/5GHz
• Operation Channel: 11 for N. America, 13 Europe (ETSI)
• Product Segment: AC1900 ultimate AC performance – 600+1300Mbps
• Data Rate: 802.11a/b/g/n/ac – downlink up to 1300Mbps, uplink up to 1300Mbps (20/40/80MHz)
• Output Power:
  • ac Mode: 18 ~ 22 dBm
  • b Mode: 22 dBm
  • g Mode: 19 ~ 22 dBm
  • n Mode: 18 ~ 22 dBm
• Modulation: 64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM
• Management: Wireless Configuration, Connection Management, Connection Profile Setup
• Security: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
• Certificates: CE, FCC, IC
• OS Support: Windows 8/ 7/ Vista/ XP (32bit/64bit)
• Dimensions (WxDxH): 103.3 x 68.9 x 21.0 mm
• Weight: 125.0 g (Device Only)
• Package Contents: 3x Dipole Antennas, External magnetic antenna base, Low Profile Bracket, Support CD, Warranty card, Wireless LAN Adapter
