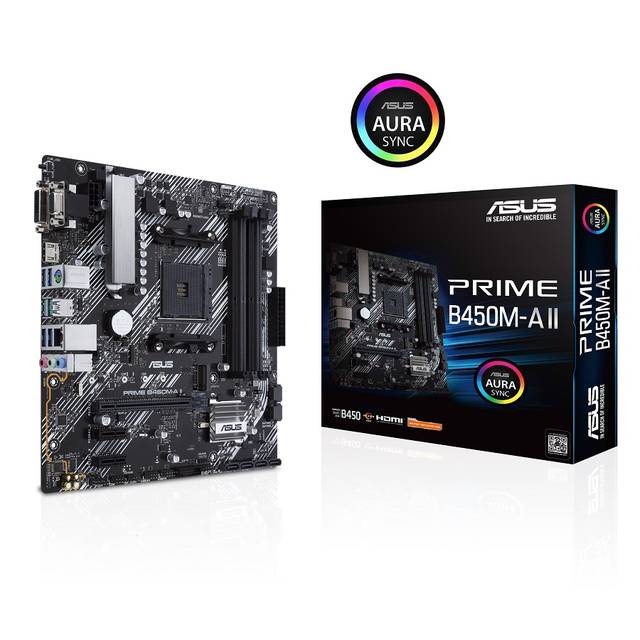

Asus PRIME B450M-A II Socket AM4/ AMD B450/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard

Specifications

• Mfr Part Number: PRIME B450M-A II
• CPU: AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
• Chipset: AMD B450
• Memory:
  • 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    – 4 x DIMM, Max. 128GB, DDR4

    4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

    – Dual Channel Memory Architecture

    – ECC Memory (ECC mode) support varies by CPU
• Graphic:
  • Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    – 1 x D-Sub
    – 1 x DVI-D
    – 1 x HDMI 2.0b
• Expansion Slots:
  • ​3rd/ 2nd/ 1st Gen AMD Ryzen Processors
    – 1 x PCIe 3.0 x16 (x16 mode)
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

    – 1 x PCIe 3.0 x16 (x8 mode)
  • AMD Athlon with Radeon Vega Graphics Processors

    – 1 x PCIe 3.0 x16 (x4 mode)
  • AMD B450 chipset
    – 2 x PCIe 2.0 x1
• Storage:
  • Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  • 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
    – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • Athlon with Radeon Vega Graphics Processors:
    – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  • 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors:
    – 2 x SATA 6Gb/s port(s)
    – Support Raid 0, 1, 10
  • AMD B450 chipset:
    – 4 x SATA 6Gb/s port(s)
    – Support Raid 0, 1, 10
• LAN:
  • Realtek RTL8111H
  • ASUS LANGuard
• Audio:
  • Realtek 7.1-Channel High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature:
    – LED-illuminated design
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
• USB Ports:
  • Rear USB Port ( Total 6 )
    – 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
    – 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • Front USB Port ( Total 6 )
    – 2 x USB 3.2 Gen 1 port(s)
    – 4 x USB 2.0 port(s)
• Software Features:
  • ​ASUS Exclusive Software
  • Armoury Crate
    – AURA Creator
    – AURA Sync
  • AI Suite 3
    – Performance and Power Saving Utility
  • TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+
  • PC Cleaner
    – EZ update
    – System Information
  • ASUS CPU-Z, AI Charger, ASUS EZ Installer, DAEMON Tools, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS
  • ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• Special Features:
  • ASUS 5X PROTECTION III
    – ASUS DIGI+ VRM
    – ASUS LANGuard
    – ASUS Overvoltage Protection
    – ASUS SafeSlot Core
    – ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-Slot
  • ASUS Thermal Solution
    – Aluminum heatsink design
  • ASUS EZ DIY
    – BIOS FlashBack button
    – BIOS FlashBack LED
  • AURA Sync
    – AURA RGB header
    ASUS Lighting Control
• Back I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 3 x Audio jack(s)
  • 1 x BIOS FlashBack Button(s)
• Internal I/O Ports:
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 2 x Chassis Fan connector(s) (2 x 4 -pin)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 1 x COM port(s) connector(s)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
  • 1 x Speaker connector
  • 1 x RGB Header
• Accessories:
  • User’s manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Operating System: Windows 10 64-bit, Windows 7 64-bit
• Form Factor:
  • mATX Form Factor
  • 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
