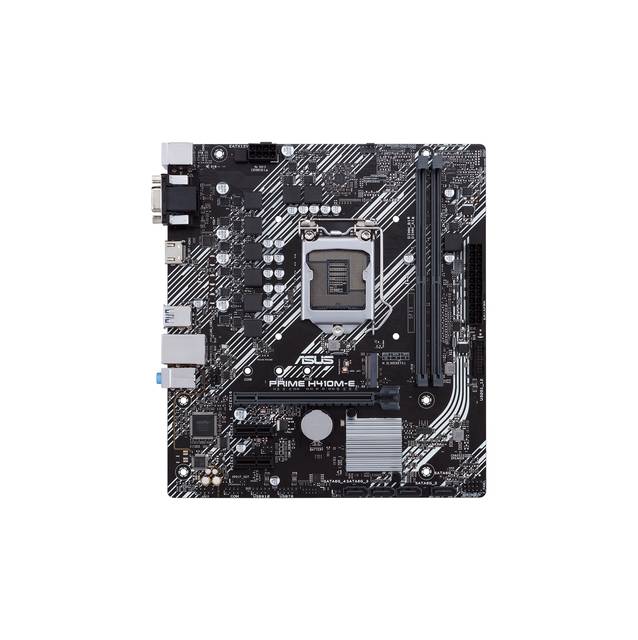

Asus PRIME H410M-E LGA1200/ Intel H410/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard

Specifications

• Mfr Part Number: PRIME H410M-E
• CPU:
  • ​Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel H410
• Memory:
  • 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem
• Graphic:
  • Integrated Graphics Processor
  • 1 x D-Sub
  • 1 x HDMI 1.4b
• Expansion Slots:
  • Intel 10th Gen Processors
    – 1 x PCIe 3.0 x 16 (x16 mode)
  • Intel H410 Chipset
    – 2 x PCIe 3.0 x 1
• Storage:
  • Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel H410 Chipset:
    – 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    – 4 x SATA 6Gb/s port(s)
• LAN: Realtek RTL8111H
• Audio:
  • Realtek ALC887 7.1-Channel High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature:
    – LED-illuminated design

    – Audio Shielding

    – Dedicated audio PCB layers

    – Premium Japanese audio capacitors
• USB Ports:
  • Rear USB Port ( Total 4 )
    – 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

    – 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 6 )
    – 2 x USB 3.2 Gen 1 port(s)

    – 4 x USB 2.0 port(s)
• Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
    – Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert
    – EZ update
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • Norton Anti-virus software(Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• ASUS Special Features:
  • ASUS 5X PROTECTION III
    – ASUS DIGI+ VRM
    – ASUS LANGuard
    – ASUS Overvoltage Protection
    – ASUS Safeslot Core
    – ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
    – ASUS Q-DIMM

    – ASUS Q-Slot
  • ASUS Thermal Solution
    – Aluminum heatsink design
• Back I/O Ports:
  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
• Internal I/O Ports:
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  • 1 x COM port(s) connector(s)
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x Speaker connector
• Accessories:
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Anchor
  • 1 x Supporting DVD
  • User manual
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor:
  • mATX Form Factor
  • 8.9 inch x 8.0 inch ( 22.6 cm x 20.3cm )
