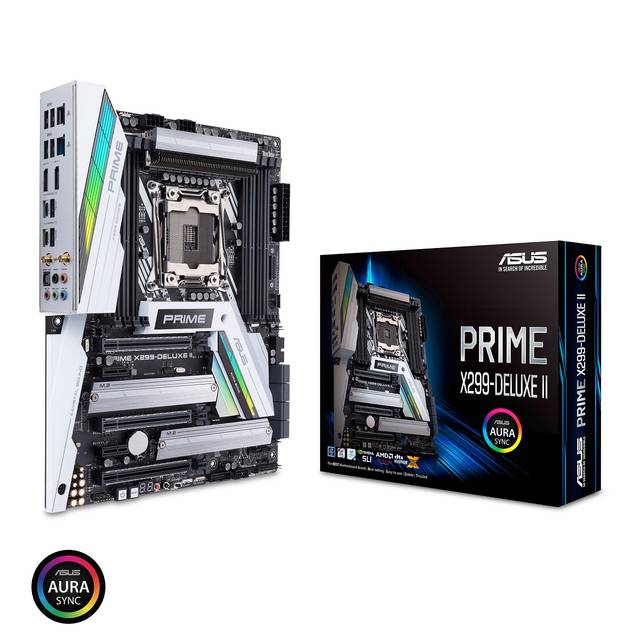

Asus PRIME X299-DELUXE II LGA2066/ Intel X299/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2/ WiFi/ A&2GbE/ ATX Motherboard

Specifications

• Mfr Part Number: PRIME X299-DELUXE II
• CPU: LGA2066
  • Supports Intel Core X-Series Processors
  • Supports 14nm CPU
  • Supports Intel Turbo Boost Max Technology 3.0
• Chipset: Intel X299
• Memory: 8x DDR4-4266(OC)/ 4133(OC)/ 4000(OC)/ 3600(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC) /3000(OC)/ 2800(OC)/ 2666 MHz DIMM Slots, Quad channel, Non-ECC, Unbuffered, Max Capacity of 128GB (6-core above)
• Slots:
  • 44-Lane CPU (18-core, 12-core & 10-core CPU): 3x PCI-Express 3.0/2.0 x16 Slots (x16, x16/x16, x16/x16/x8), 2x PCI-Express 3.0/2.0 x1 Slots
  • 28-Lane CPU (6-core & 8-core CPU): 2x PCI-Express 3.0/2.0 x16 Slots (x16, x16/x8), 1x PCI-Express 3.0/2.0 x16 Slot (max at x2 mode), 2x PCI-Express 3.0/2.0 x1 Slots
• Multi-Graphics: Supports AMD Quad-GPU & 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU & 3-Way/ 2-Way SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports
  • M.2: 3x M.2 Ports, one with M key supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 mode, one with M key supports type 2242/ 2260/ 2280/ 22110 & SATA & PCI-Express 3.0 x4 mode, one with vertical M Key supports type 2242/ 2260/ 2280/ 22110 & PCI-Express mode
• Audio: Realtek S1220A 8-Channel High Definition Audio CODEC
• LAN: Intel I219V Gigabit Ethernet Controller and Aquantia AQC-111C 5G Ethernet Controller, Intel Wireless-AC 9260 2×2 MU-MIMO 802.11 a/b/g/n/ac Wireless LAN (2.4/5 GHz), Bluetooth V5.0
• Ports: 2x USB 3.1 Gen 2 ports (USB TypeC), 1x USB 3.1 Gen 2 Port (front), 8x USB 3.1 Gen 1 Ports (4 rear, 4 at mid-board), 4x USB 2.0 Ports (2 rear, 2 at mid-board), 2x Intel Thunderbolt 3 Ports (USB TypeC), 2x DisplayPort IN Ports for Thunderbolt 3, 1x Optical S/PDIF out, 1x Aquantia 5G LAN port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24-pin EATX Power Connector, 2x 8-pin EATX 12V Power connectors
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
