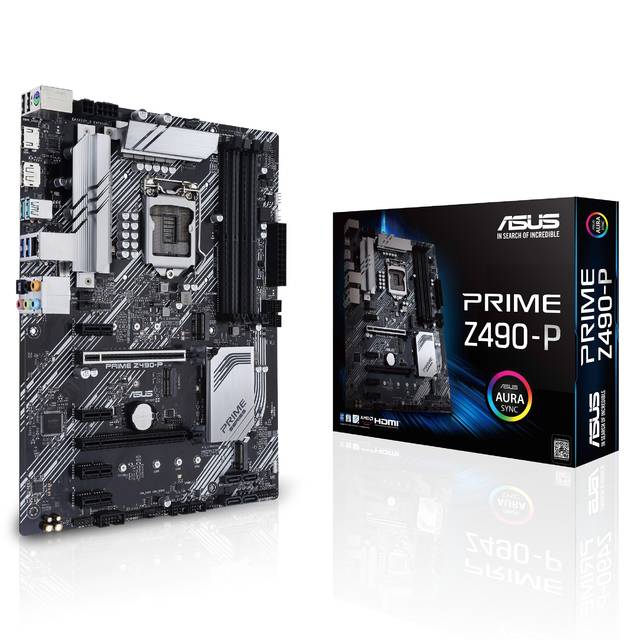

Asus PRIME Z490-P LGA1200/ Intel Z490/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ ATX Motherboard

Specifications

• Mfr Part Number: PRIME Z490-P
• CPU:
  • ​Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel Z490
• Memory:
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
• Graphics:
  • Integrated Graphics Processor
    – 1 x DisplayPort 1.4
    – 1 x HDMI 1.4b
• Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
• Expansion Slots:
  • Intel 10th Gen Processors
    – 1 x PCIe 3.0 x16 (x16 mode)
  • Intel Z490 Chipset
    – 1 x PCIe 3.0 x16 (x4 mode)
    – 4 x PCIe 3.0 x1
• Storage:
  • ​Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports​
  • Intel Z490 Chipset:
    – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    – 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    – 4 x SATA 6Gb/s port(s)
    – Support Raid 0, 1, 5, 10
    – Intel Rapid Storage Technology supports
    – Intel Optane Memory Ready
• LAN: Realtek RTL8111H
• Wireless Data Network: M.2 slot only (Key E) (Support CNVI & PCIe interface)
• Audio:
  • Realtek ALC887 8-Channel High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature:
    – Optical S/PDIF out port(s) at back panel
    – LED-illuminated design
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
• USB Ports:
  • ​Rear USB Port ( Total 6 )
    – 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
    – 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    – 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 8 )
    – 4 x USB 3.2 Gen 1 port(s)
    – 4 x USB 2.0 port(s)
• Software Features:
  • ​ASUS Exclusive Software
  • Armoury Crate
    – Aura Sync
  • AI Suite 3
    – Performance And Power Saving Utility
  • EPU
  • Digi+ VRM
  • Fan Xpert 4
    – EZ update
  • AI Charger
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• ASUS Special Features:
  • ASUS 5X PROTECTION III
    – ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
    – ASUS LANGuard
    – ASUS Overvoltage Protection
    – ASUS SafeSlot Core+
    – ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-Slot
  • ASUS Thermal Solution
    – Aluminum heatsink design
  • ASUS EZ DIY
    – Procool
  • AURA Sync
    – Standard RGB headers
    – Addressable Gen 2 RGB header
• Back I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
• Internal I/O Connectors:
  • 1 x CPU Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 with E key for Wi-Fi module
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x AIO_PUMP connector
  • 1 x Thunderbolt header(s)
  • 1 x 4-pin EATX 12 V Power connector
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
• Accessories:
  • ​User’s manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x M.2 SSD screw package(s)
  • 1 xM.2 Key E screw package(s)
• ​BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
