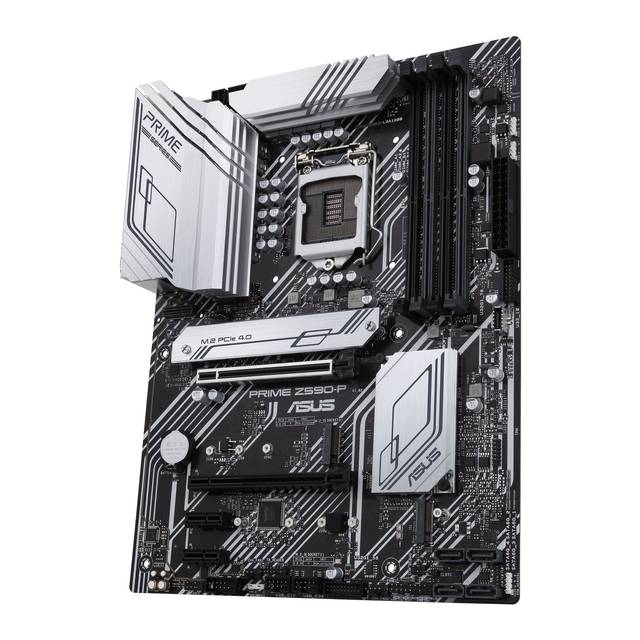

Asus PRIME Z590-P LGA1200/ Intel Z590/ DDR4/ SATA3&USB3.2/ M.2/ WiFi & Bluetooth/ ATX Motherboard

Specifications

• Mfr Part Number: PRIME Z590-P
• CPU:
  • ​Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0​
• Chipset: Intel Z590
• Memory:
  • 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem III
• Graphic:
  • 1 x DisplayPort 1.4
  • 1 x HDMITM 1.4 / 2.0
• Expansion Slots:
  • ​Intel 11th &10th Gen Processors
    – 1 x PCIe 4.0/3.0 x16 slot
    – Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
    – Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
  • Intel Z590 Chipset
    – 1 x PCIe 3.0 x16 slot (supports x4 mode)
    – 2 x PCIe 3.0 x1 slots
• Storage:
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel 11th Gen Processors
    – M.2_1 slot (Key M), type 2242/2260/2280/22110
      – Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  • Intel Z590 Chipset
    – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    – M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
    – Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
    – To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth:
  • V-M.2 slot only (Key E, CNVi & PCIe)
  • Wi-Fi module and vertical M.2 Key E bracket set are purchased separately
• USB Ports:
  • ​Rear USB (Total 6 ports)
    – 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
    – 1 x USB 3.2 Gen 2 port (1 x Type-A)
    – 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    – 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 9 ports)
    – 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
    – 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    – 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio:
  • Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
  • Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium Japanese audio capacitors
    – Dedicated audio PCB layers
• Back I/O Ports:
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x V-M.2 slot (Key E)
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Ports:
  • ​Fan and Cooling related
    – 1 x 4-pin CPU Fan header
    – 1 x 4-pin AIO Pump header
    – 3 x 4-pin Chassis Fan headers
  • Power related
    – 1 x 24-pin Main Power connector
    – 1 x 8-pin +12V Power connector
    – 1 x 4-pin +12V Power connector
  • Storage related
    – 3 x M.2 slots (Key M)
    – 4 x SATA 6Gb/s ports
  • USB
    – 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
    – 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    – 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
    – 2 x AURA Addressable Gen 2 headers
    – 2 x AURA RGB headers
    – 1 x Clear CMOS header
    – 1 x COM Port header
    – 1 x Front Panel Audio header (AAFP)
    – 1 x SPI TPM header (14-1pin)
    – 1 x 20-5pin System Panel header
    – 1 x Thunderbolt header
• ASUS Special Features:
  • ASUS 5X PROTECTION III
  • ASUS Q-Design
  • ASUS Thermal Solution
  • ASUS EZ DIY
  • AURA Sync
• Software Features:
  • ​ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert 4
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
• BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Accessories:
  • ​Cables
    – 2 x SATA 6Gb/s cables
  • Miscellaneous
    – 1 x I/O Shield
    – 1 x M.2 Rubber Package
    – 2 x M.2 SSD screw packages
  • Installation Media
    – 1 x Support DVD
  • Documentation
    – 1 x User manual
• Operating System: Windows 10 64-bit
• Form Factor:
  • ​ATX Form Factor
  • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
