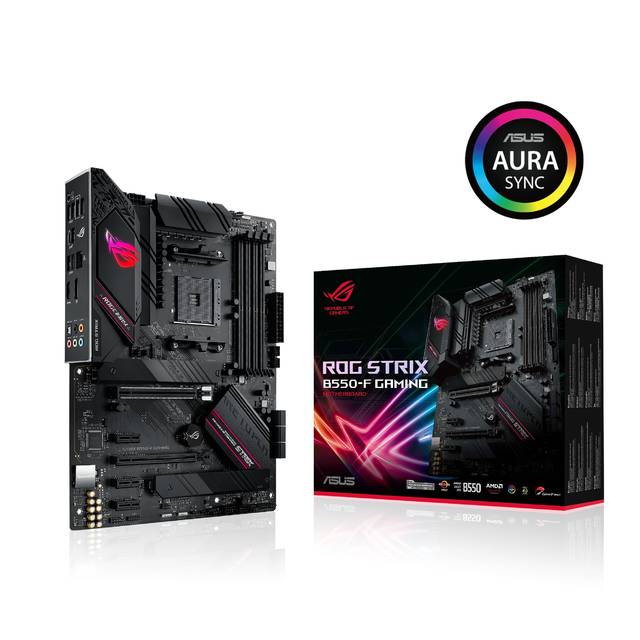

Asus ROG STRIX B550-F GAMING Socket AM4/ AMD B550/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ ATX Motherboard

Specifications

• Mfr Part Number: ROG STRIX B550-F GAMING
• CPU: AMD AM4 Socket 3rd Gen AMD Ryzen Processors
• Chipset: AMD B550
• Memory: ​
  • 3rd Gen AMD Ryzen Processors
    – 4 x DIMM, Max. 128GB DDR4, 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    – Dual Channel Memory Architecture
    – OptiMem II
    – ECC Memory (ECC mode) support varies by CPU.
• Graphics:
  • Integrated Graphics Processor
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.1(4K@60HZ)
• Multi-GPU Support:​ Supports AMD 2-Way CrossFireX Technology
• Expansion Slots:
  • 3rd Gen AMD Ryzen Processors
    – 1 x PCIe3.0 x16 (x16 mode)
  • AMD B550 Chipset
    – 1 x PCIe 3.0 x16 (x4 mode)
    – 3 x PCIe 3.0 x1
• Storage:
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • 3rd Gen AMD Ryzen Processors:
    – 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • AMD B550 Chipset:
    – 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    – 6 x SATA 6Gb/s port(s)
    – Support Raid 0, 1, 10
• LAN:​
  • Intel I225-V 2.5Gb Ethernet
  • ASUS LANGuard
• Audio:
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    – Dual OP Amplifiers
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/192kHz playback
  • Audio Feature:
    – SupremeFX Shielding Technology
    – Gold-plated jacks
    – Optical S/PDIF in port(s) at back panel
    – Audio Shielding
    – Premium Japanese audio capacitors
    – Audio Cover
• USB Ports:
  • ​Rear USB Port ( Total 8 )
    – 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)

    – 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

    – 2 x USB 2.0 port(s)
  • Front USB Port ( Total 6 )
    – 2 x USB 3.2 Gen 1 port(s)

    – 4 x USB 2.0 port(s)
• Software Features:
  • ​ROG Exclusive Software
    – RAMCache III
    – ROG CPU-Z
    – GameFirst VI
    – Sonic Studio III + Sonic Studio Virtual Mixer
    – Sonic Radar III
    – DTS Sound Unbound
    – Overwolf
    – Anti-virus software
  • ASUS Exclusive Software Features
  • Armoury Crate
    – Aura Creator
    – Aura Sync

    – AI Noise Cancelling Microphone
  • AI Suite 3
    – PPSU
  • EPU
  • DIGI+ VRM
  • Fan Xpert 4
  • TurboV EVO
    – EZ update
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• ASUS Special Features:​​
  • Aura Sync
    – Standard RGB header(s)
    – Addressable Gen 2 RGB header(s)
  • ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
    – ASUS Q-Slot
  • ASUS Thermal Solution
    – Aluminum M.2 heatsink
  • ASUS EZ DIY
    – BIOS Flashback button
    – BIOS FlashBack LED
    – Clear CMOS header
    – Procool
    – Pre-mounted I/O shield
    – SafeSlot
• ​Back I/O Ports:
  • 1 x Intel I225-V 2.5Gb Ethernet
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 1 x BIOS FlashBack Button(s)
  • 5 x Gold-plated audio jacks
  • ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
• ​Internal I/O Ports:​
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x AAFP connector
  • 2 x Aura RGB Strip Header(s)
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x System panel(s)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
• Accessories:​
  • User’s manual
  • 4 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x ROG Strix stickers
  • 1 x Cable ties pack(s)
  • 1 x Extension cable for Addressable LED
  • 1 x ROG Thank you card
  • 1 x M.2 SSD screw package(s)
  • 1 x M.2 Rubber Package(s)
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor:
  • ​ATX Form Factor
  • 12 inch x 9.6 inch( 30.5 cm x 24.4 cm )
