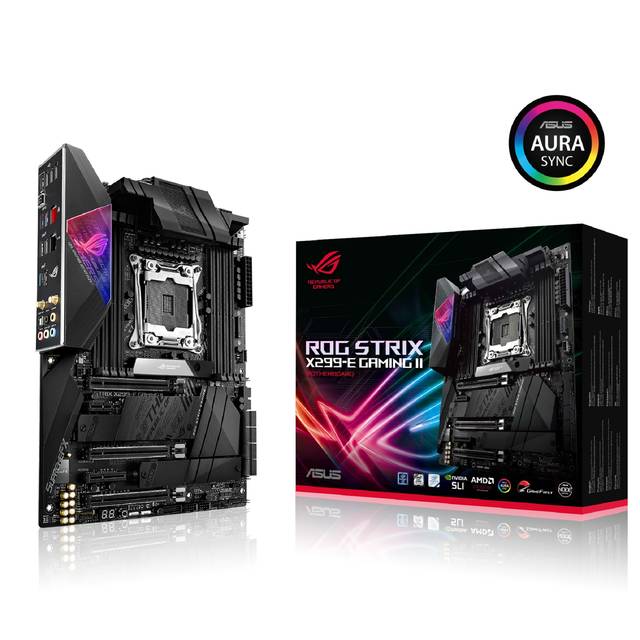

Asus ROG STRIX X299-E GAMING II LGA2066/ Intel X299/ DDR4/ 3-Way CrossFireX & 3-Way SLI/ SATA3&USB3.2/ M.2/ WiFi+Bluetooth/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: ROG STRIX X299-E GAMING II
• CPU: Intel Socket 2066 Core X-Series Processors
• Chipset: Intel X299
• Memory:
  • (Intel Core i9 10000 X-Series CPU)
    – 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • (Intel Core i9 9000/7000 and i7 9000 X-Series CPU)
    – 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    – Quad Channel memory architecture
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Multi-GPU Support:
  • Supports NVIDIA 3-Way SLI Technology
  • Supports NVIDIA 2-Way SLI Technology
  • Supports AMD 3-Way CrossFireX Technology
  • Supports AMD 2-Way CrossFireX Technology
• Expansion Slots:
  • 48-Lane CPU-(Intel Core i9 10000 X-Series CPU)
    – 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
  • 44-Lane CPU-(Intel Core i9 9000/7000 and i7 9000 X-Series CPU)
    – 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4)
  • 28-Lane CPU-(Intel Core i7 7000 X-Series CPU)
    – 3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4)
  • Intel X299 Chipset
    – 1 x PCIe 3.0 x4
    – 1 x PCIe 3.0 x1
    * PCIe 3.0 x1 slot share with USB3.2 Gen2 front panel connector.
• Storage:
  • Intel Core X-Series Processors Family:
    – 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    * M.2_2 and M.2_3 support 44-Lane CPU (Intel Core i7 9000 X-Series CPU and above).
    – Intel Virtual RAID on CPU(VROC)
  • Intel X299 Chipset:
    – 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
    – 8 x SATA 6Gb/s port(s)
    – Support Raid 0, 1, 5, 10
    – Intel Rapid Storage Technology supports
    – Intel Optane Memory Ready
    * The M.2 PCIe mode sources from Intel X299 Chipset supports Intel Optane Memory
• LAN:
  • Intel I219V
  • Realtek RTL8125-CG 2.5G LAN
  • Anti-surge LANGuard
  • ROG GameFirst Technology
• Wireless Data Network: Intel Wi-Fi 6 AX200
• Bluetooth: Bluetooth 5.0
• Audio:
  • SupremeFX 8-Channel High Definition Audio CODEC S1220A
    – Dual Headphone Amplifiers
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input
    – SupremeFX Shielding Technology
    – Supports up to 32-Bit/192kHz playback
    * Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio
  • Audio Features:
    – SupremeFX Shielding Technology
    – DTS Sound Unbound
    – Optical S/PDIF out port(s) at back panel
    – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    – Sonic Radar III
    – Sonic Studio III + Sonic Studio Virtual Mixer
• USB Ports:
  • ASMedia USB 3.2 Gen 2 controller:
    – 1 x USB 3.2 Gen 2 front panel connector port(s)
    – 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (4 at back panel, 3 x Type-A+1 x Type-C)
  • Intel X299 Chipset:
    – 6 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (2 at back panel, 4 at mid-board)
    – 8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board)
• ROG Exclusive Features:
  • ROG CPU-Z
  • Overwolf
  • USB BIOS Flashback
  • ROG Exclusive Software
    – GameFirst V
    – Overwolf
    – Sonic Studio III + Sonic Studio Virtual Mixer
• Special Features:
  • OC Design – ASUS PRO Clock II Technology
  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
    – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
  • AI Overclocking
  • LiveDash OLED
  • AURA:
    – Aura Lighting Control
    – Aura RGB Strip Headers
    – Addressable Gen 2 Header
  • ASUS Exclusive Features:

    – USB BIOS Flashback

    – AI Suite 3

    – Ai Charger

    – Onboard Button: Power

    – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

    – Armoury Crate

    – ASUS NODE: hardware control interface
  • ASUS EZ DIY:
    – ASUS EZ Flash 3
    – ASUS USB BIOS Flashback
    – ASUS UEFI BIOS EZ Mode
    – Multi-language BIOS
  • ASUS Q-Design:

    – ASUS Q-Code

    – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

    – ASUS Q-Slot

    – ASUS Q-DIMM

    – ASUS Q-Connector
• Back I/O Ports:
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x Anti-surge 2.5G LAN (RJ45) port
  • 1 x Wi-Fi antenna port(s)
  • 1 x USB BIOS Flashback Button(s)
  • 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
  • 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)
• Internal I/O Ports:
  • 1 x AAFP connector
  • 2 x Aura RGB Strip Headers
  • 2 x Addressable Gen 2 header(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x VROC_HW_Key
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x W_PUMP+ connector
  • 1 x 24-pin EATX Power connector(s)
  • 2 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel connector(s)
  • 1 x System panel(s) (Q-Connector)
  • 1 x Thermal sensor connector(s)
  • 1 x Power-on button(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x Node Connector(s)
  • 1 x CPU_OV jumper
  • 1 x M.2 Fan Header
  • 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
• Accessories:
  • User’s manual
  • 1 x Vertical M.2 bracket set
  • 4 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ROG Strix stickers
  • 1 x Q-Connector
  • 1 x M.2 screw kit (long screw and mount)
  • 1 x Cable ties pack(s)
  • 1 x Wi-Fi Antenna(s)
  • 1 x ROG Door Hanger(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x Thermistor cable(s)
  • 1 x ROG Thank you card
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
• Manageability: WOL, PXE
• Support Disc:
  • Drivers
  • ASUS Utilities
  • EZ Update
  • Anti-virus software (OEM version)
• Operating System: Windows 10 64-bit
• Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
