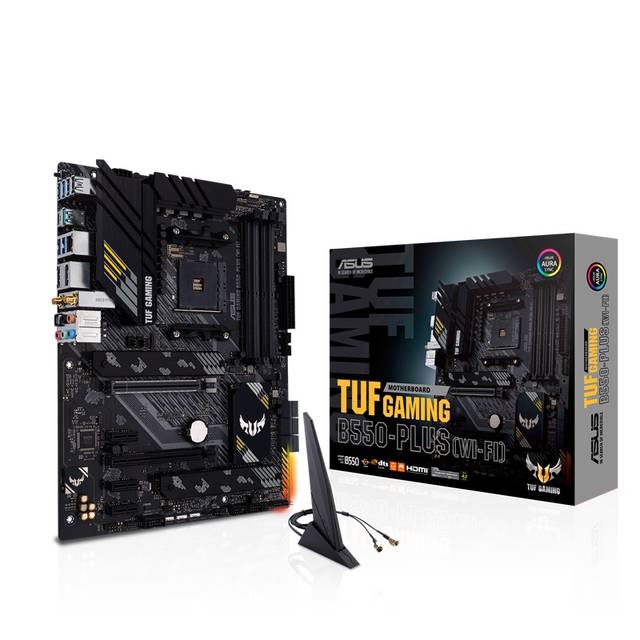

Asus TUF GAMING B550-PLUS WIFI Socket AM4/ AMD B550/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ WiFi/ ATX Motherboard

Specifications

• Mfr Part Number: TUF GAMING B550-PLUS WIFI
• CPU: Build in AMD for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Chipset: AMD B550
• Memory:
  • AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
  • AMD Ryzen 4000 G-Series Processors
  • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU
• Graphics:
  • 1  x DisplayPort 1.2
  • 1  x HDMI 2.1(4K@60HZ)
• Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
• Expansion Slots:
  • AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
    – 1 x PCIe 4.0 x16 (x16 mode)
  • AMD RyzenTM 4000 G-Series Processor
    – 1 x PCIe 3.0 x16 (x16 mode)
  • AMD B550 Chipset
    – 1 x PCIe 3.0 x16 (x4 mode)
    – 3 x PCIe 3.0 x1
• Storage:
  • Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  • AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
    – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • AMD Ryzen 4000 G-Series Processors:
    – 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
  • AMD B550 Chipset:
    – 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    – 6 x SATA 6Gb/s port(s)
    – Support Raid 0, 1, 10
• Ethernet: Realtek RTL8125B 2.5Gb Ethernet, TUF LANGuard
• Wireless Data Network:
  • ​Intel Wi-Fi 6 AX200
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports PCIe interface
• Audio:
  • Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature:
    – Exclusive DTS Custom for GAMING Headsets
    – Optical S/PDIF out port(s) at back panel
    – Audio cover
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
    – Unique de-pop circuit
• USB Ports:
  • Rear USB: Total 8 ports
    – 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    – 4 x USB 3.2 Gen 1 port(s)( x Type-A)
    – 2 x USB 2.0 port(s)( x Type-A)
  • Front USB: Total 6 ports
    – 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    – 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features:
  • ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – AI Noise Cancelling Microphone
  • AI Suite 3
    – Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 4
    – EZ update
  • TUF GAMING CPU-Z
  • AI Charger
  • ASUS Turbo LAN
  • DAEMON Tools
  • DTS Custom for GAMING Headsets
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• ASUS Special Features:
  • ASUS TUF PROTECTION
    – ASUS DIGI+ VRM (Digital power design with Dr. MOS)
    – ASUS Enhanced DRAM Overcurrent Protection
    – ASUS ESD Guards
    – TUF LANGuard
    – ASUS Overvoltage Protection
    – ASUS SafeSlot
    – ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – ASUS Q-Slot
  • ASUS Thermal Solution
    – Aluminum M.2 heatsink
  • ASUS EZ DIY
    – BIOS FlashBack button
    – BIOS FlashBack LED
    – Procool
  • AURA Sync
    – Standard RGB headers
    – Addressable Gen 2 RGB header
• Back Panel I/O Ports: ​
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (2.5G) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x BIOS FlashBack Button(s)
  • 1 x ASUS Wi-Fi Module
• Internal I/O Ports:
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 2 x Aura RGB Strip Headers
  • 2 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 6 x SATA 6Gb/s connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
• Accessories:
  • User´s manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x TUF Gaming Sticker
  • 1 x TUF Certification card(s)
  • 1 x Wi-Fi Antenna(s)
  • 1 x M.2 SSD screw package(s)
  • 1 x M.2 Rubber Package(s)
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PXE
• Operating System: Windows 10 64-bit
• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
