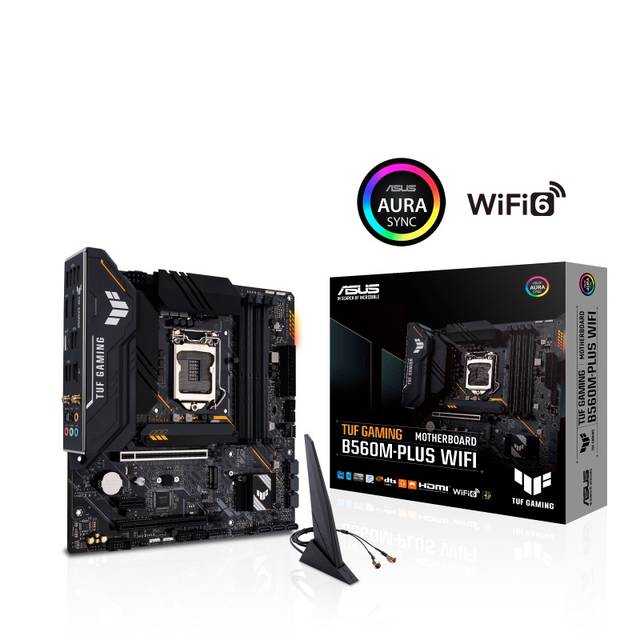

Asus TUF GAMING B560M-PLUS WIFI Socket LGA1200/ Intel B560/ DDR4/ WiFi&Bluetooth/ SATA3&USB3.2/ M.2/ microATX Motherboard

Specifications

• Mfr Part Number: TUF GAMING B560M-PLUS WIFI
• CPU:
  • Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel B560 Chipset
• Memory:
  • Memory Channels: 4 DDR4 (Dual channel)
  • Max Memory Size: 128GB
  • DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
• Graphic:
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0
• Expansion Slots:
  • Intel 11th & 10th  Gen Processors
    – 1 x PCIe 4.0/3.0 x16 slot
      – Intel 11th Gen processors support PCIe 4.0 x16
      – Intel 10th Gen processors support PCIe 3.0 x16
  • Intel B560 Chipset
    – 1 x PCIe 3.0 x16 slot (supports x4 mode)
    – 1 x PCIe 3.0 x1 slots
• Storage:
  • Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel 11th Gen Processors
    – M.2_1 slot (Key M), type 2242/2260/2280: Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  • Intel B560 Chipset
    – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    – 6 x SATA 6Gb/s ports
    (To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.)
• Ethernet: 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
• Wireless & Bluetooth:
  • Intel Wi-Fi 6
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.0 or later
• USB Ports:

  • Rear USB: Total 9 ports
    – 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
    – 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C)
    – 4 x USB 2.0 port(s) (4 x Type-A)
  • Front USB: Total 7 ports
    – 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C)
    – 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    – 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Audio:

  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
  • Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium Japanese audio capacitors
    – Dedicated audio PCB layers
• Back Panel I/O Ports: â€‹
  • 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
  • 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C)
  • 4 x USB 2.0 port(s) (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x ASUS Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Ports:
  • 1 x TB Header (for add-on TB card)
  • Fan and Cooling related
    – 1 x 4-pin CPU Fan header(s)
    – 1 x 4-pin CPU OPT Fan header(s)
    – 2 x 4-pin Chassis Fan header(s)
  • Power related
    – 1 x 24-pin Main Power connector
    – 1 x 8-pin +12V Power connector
  • Storage related
    – 2 x M.2 slots (Key M)
    – 6 x SATA 6Gb/s ports
  • USB
    – 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
    – 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    – 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
  • Miscellaneous
    – 2 x AURA Addressable Gen 2 header(s)
    – 2 x AURA RGB header(s)
    – 1 x Clear CMOS header
    – 1 x COM Port header
    – 1 x Front Panel Audio header (AAFP)
    – 1 x 20-3 pin System Panel header with Chassis intrude function
    – 1 x Thunderbolt header
• ASUS Special Features:

  • ASUS TUF PROTECTION
    – Digital power design with DrMOS
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
  • ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
  • ASUS Thermal Solution
    – Flexible M.2 heatsink
    – VRM heatsink design
  • ASUS EZ DIY
    – ProCool
    – Pre-mounted I/O shield
  • AURA Sync
    – AURA RGB header(s)
    – Addressable Gen 2 RGB header(s)
• Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
    – AURA Creator
    – AURA Sync
    – Two-Way AI Noise Cancelation
  • AI Suite 3
    – Performance And Power Saving Utility
  • TurboV EVO, EPU, Digi+ VRM
  • Fan Xpert 2+: EZ update
  • TUF GAMING CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, MyAsus, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS
  • ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Accessories:
  • Cables
    – 2 x SATA 6Gb/s cables
  • Miscellaneous
    – 1 x ASUS Wi-Fi moving antennas
    – 1 x M.2 Rubber Package(s)
    – 1 x M.2 SSD screw package(s)
    – 1 x TUF Gaming sticker
  • Installation Media
    – 1 x Support DVD
  • Documentation
    – 1 x TUF Certification card
    – 1 x User manual
• Operating System: Windows 10 64-bit
• Form Factor:
  • microATX
  • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
