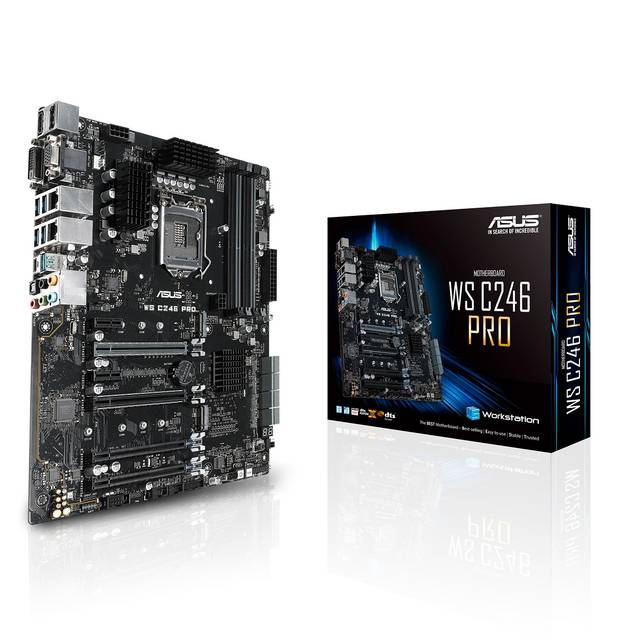

ASUS WS C246 PRO LGA1151/ Intel C246/ DDR4/ SATA3&USB3.1/ M.2/ A&2GbE/ ATX Motherboard

Original price was: $442.52.Current price is: $341.37.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

21 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-WS C246 PRO Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: WS C246 PRO
CPU: LGA1151
- Supports Intel Xeon E-2100 Family Processors
- Supports 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
Chipset: Intel C246
Memory: 4x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Max Capacity of 64GB
Slots: 2x PCI-Express 2.0 x1 Slots, 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 1x PCI-Express 1.0 x4 Slot
Storage:
- SATA: 8x SATA3 Ports
- M.2: 2x M.2 Ports, one supports NGFF type 22110/ 2280/ 2260/ 2242, one supports NGFF type 2280/ 2260/ 2242
Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
LAN: Intel I210AT and i219-LM Gigabit Ethernet Controllers
Ports: 2x USB 3.1 Ports (1 Type A rear, 1 Type C rear), 5x USB 3.0 Ports (4 rear, 1 via header), 2x USB 2.0 Ports (via header), 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x DisplayPort, 1x S/PDIF Out, 2x RJ45 LAN Ports, Audio I/O Jacks
Power Connector: 1x 24pin ATX Power Connector
Form Factor: ATX, 12.0 x 9.6 inch / 305.0 x 244.0 mm
