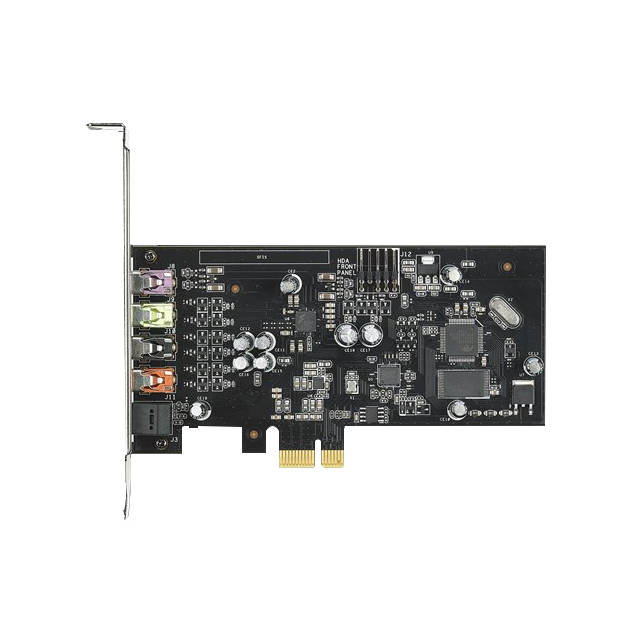

Asus XONAR SE 5.1 Channel 192kHz/24-bit Hi-Res 116dB SNR PCIe Gaming Sound Card with Windows 10 compatibility

Specifications

• Mfr Part Number: XONAR SE
• Features:
  • 5.1 channel, 192kHz/24-bit Hi-Res audio with a 300ohm headphone amp for detailed, immersive sound with punchy, defined bass
  • Realtek ALC1220X codec delivers a crystal clear 116dB signal-to-noise ratio (SNR)
  • ASUS Hyper Grounding Technology ensures minimal audio distortion and interference
  • Xonar Audio Center enables full audio control via an intuitive, spacious interface
  • Included Low Profile Bracket allows the Xonar to fit perfectly into most systems
• Audio Interface: PCI Express
• Chipset: Audio Processor – C-Media USB2.0 6620A High-Definition Sound Processor (Max.192KHz/24bit)
• Audio Performance:
  • Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 116 dB
  • Input Signal-to-Noise Ratio (A-Weighted): 110 dB
  • Output THD+N at 1kHz (Front-out): 0.00251 %(-92 dB)
  • Input THD+N at 1kHz: 0.00251 %(-92 dB)
  • Frequency Response (-3dB, 24bit/192KHz input): 10 Hz to 87 KHz
  • Output/Input Full-Scale Voltage: Headphone output – 2 Vrms (5.65 Vp-p)
• Digital-to-Analog Converter(DAC): Realtek S1220A (120dB SNR, Max. 192KHz/24bit)
• Sample Rate and Resolution:
  • Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16bit/24bit
  • Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16bit/24bit
  • S/PDIF Digital Output: 44.1K/48K/96K/192KHz @ 16bit/24bit
  • ASIO 2.0 Driver Support: 44.1K/48K/96K/192KHz @ 16bit/24bit
• Connectivity:
  • Analog Output: 3x 3.5 mm jack (1/8″) (Front out/Side out/Rear out)
  • Analog Input: 1x 3.5 mm jack (1/8″) (Line-in/ Mic-in)
  • Digital: 1x S/PDIF out (1x Optical (Toslink))
• Special Features:
  • ​Smart Volume Normalizer
  • Xear 3D Virtual Speaker Shifter
  • Xear Surround
  • Magic Voice
• Operating System: Windows 7/ 8.1/ 10
• Package Contents: 1x Low-profile bracket, 1x Driver CD, 1x Quick start guide
