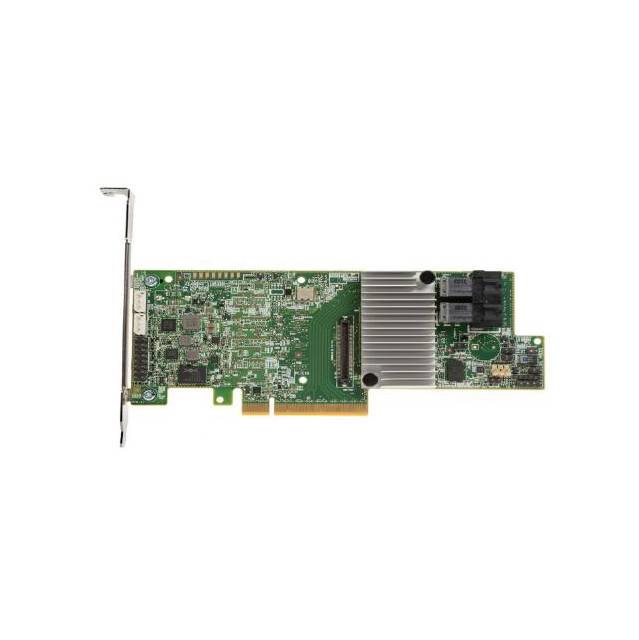

Broadcom LSI MegaRAID SAS 9361-8i 8-Port 12Gb/s SATA+SAS PCI-Express 3.0 Low Profile RAID Controller, Single

Name: Broadcom LSI MegaRAID SAS 9361-8i 8-Port 12Gb/s SATA+SAS PCI-Express 3.0 Low Profile RAID Controller, Single
SKU: KOAH-LSI00417/05-25420-08 / 9361-8I SGL
Availability: InStock

Original price was: $1,081.50.Current price is: $834.30.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

3 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-LSI00417/05-25420-08 / 9361-8I SGL Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: LSI00417
Features:
- High performance 12Gb/s data transfer rates
- Eight internal 12Gb/s SATA+SAS ports
- LSISAS3108 – 1.2GHz PowerPC 476 dual core 12Gb/s ROC
- Support for CacheVault flash cache protection
- Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS ports
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCI-Express 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVaultÂ flash cache protection
Solution Provided: Eight-port internal 12Gb dual core ROC-based SAS solution for data center, cloud, and performance-hungry applications using up to 128 SAS or SATA devices
Connectors: 2x Mini-SAS (SFF-8643) Internal Connectors (Horizontal Mount)
Device Support: Up to 128 SATA and/or SAS HDDsÂ and SSDs
Host Bus Type: PCI-Express 3.0 x8 Compliant
Data Transfer Rates: Up to 12Gb/s per port
I/O Processor/SAS Controller: LSISAS3108 Dual-Core RAID on Chip (ROC)
Cache Memory: 1GB 1866MHz DDRIII SDRAM
Key RAID Data Protection Features:
- RAID levels 0, 1, 5, and 6
- RAID spans 10, 50, and 60
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Auto resume after loss of system power during array rebuild or reconstruction (RLM)
- Single controller Multipathing
- Load Balancing
- Configurable stripe size up to 1MB
- Fast initialization for quick array setup
- Check Consistency for background data integrity
- SSD Support with SSD GuardÂ technology
- Patrol read for media scanning and repairing
- 64 logical drive support
- Up to 64TB LUN support
- DDF compliant Configuration on Disk (COD)
- S.M.A.R.T support
- Global and dedicated Hot Spare with Revertible Hot Spare support – Automatic rebuild, Enclosure affinity, Emergency SATA hot spare for SAS arrays
- Enclosure management – SES (inband) – SGPIO (sideband)
- DataboltÂ bandwidth optimizer technology support for compatible expander-based enclosures
- Shielded state drive diagnostic technology
Operating Voltage: +3.3 V and +12 V
MTBF (Calculated):Â 1,343,187 Hours
MegaRAID Management Suite: MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
OS Support: Windows Server 2012, Windows 8/Â 7/ 2008/ Vista/ 2003/ XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
SSD Optimization: MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers (Included)
Form Factor: Low Profile
Dimensions: 6.600 x 2.536 inch
Package Contents: MegaRAID SAS 9361-8i, QIG, Low Profile Bracket
