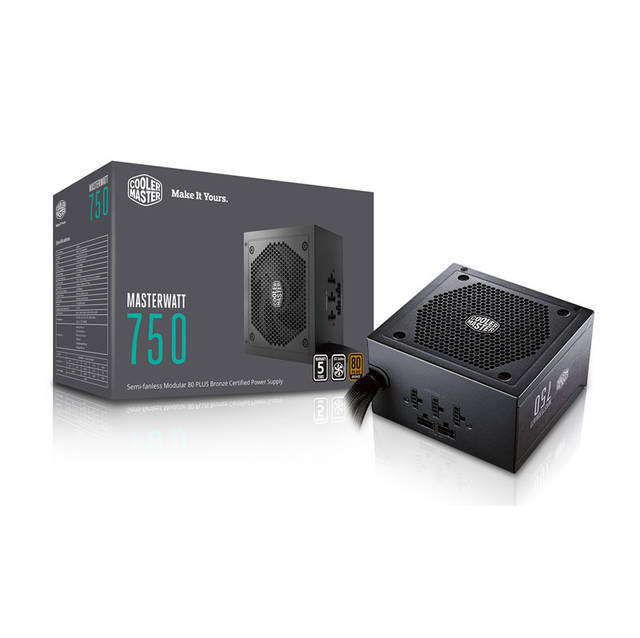

Cooler Master Masterwatt MPX-7501-AMAAB-US 750W 80 PLUS Bronze ATX 12V V2.4 Power Supply

Specifications

• Mfr Part Number: MPX-7501-AMAAB-US
• Features:
  • 80 PLUS Bronze Certified – The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%
  • Durable LDB Bearing – Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling
  • Semi-Fanless up to 15% load – MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing
  • Dual Forward and DC-to-DC Circuit Design – The Dual Forward and DC-to-DC circuit design offers reliability and stability. This is especially significant in +3.3V and +5V outputs
  • More Conductive PCI-e Cables – The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment
• Type: ATX 12V V2.4
• Output Capacity: 750W
• Input
  • Voltage: 100 – 240V AC
  • Current: 10 – 5A
  • Frequency: 50 – 60Hz
• PFC: Active PFC
• Power Good Signal: 100 – 500ms
• Hold Up Time: 16ms at 80% load
• MTBF: >100,000 Hours
• Fan: 120mm LDB Fan
• Efficiency: 85% Typically Load
• Protection: OCP / OVP / UVP / OPP / OTP / SCP
• Output: +3.3V @ 22A, +5V @ 22A, +12V @ 62.5A, -12V @ 0.3A, +5sb @ 3A
• Connectors: 1x 24pin Motherboard Connector, 1x 4+4pin CPU 12V Connector, 4x 6+2pin PCI-Express Connectors, 9x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• Dimensions (BxLxH): 150.0 x 140.0 x 86.0 mm
