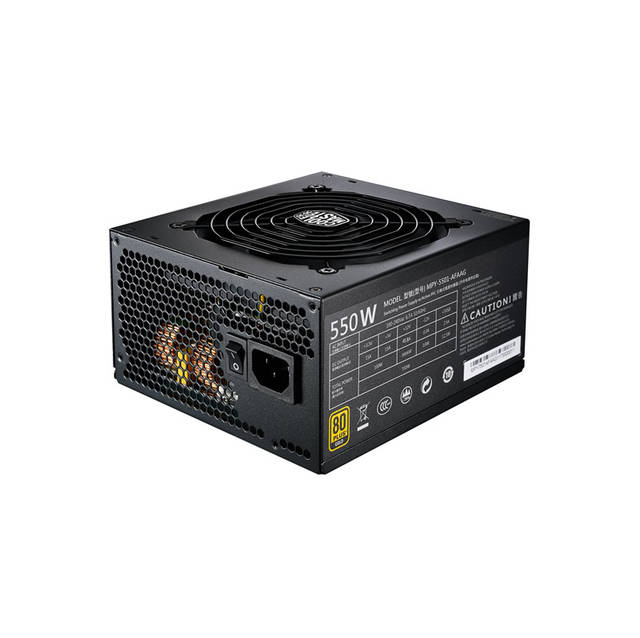

Cooler Master MWE Gold 550 Full Modular MPY-5501-AFAAG-US 550W 80 PLUS Gold ATX 12V V2.31 Power Supply w/ Active PFC

Specifications

• Mfr Part Number: MPY-5501-AFAAG-US
• Features:
  • Full Modular Flat Cables – Full modular flat cables are easy to install, reduce clutter, and maximize airflow
  • 80 PLUS Gold Certified – The 80 PLUS Gold certification guaranties a minimum typical efficiency of 90%
  • Silent and Durable LDB Fan Bearing – Silencio technology combines sealed LDB bearings with quiet fan blades, delivering a long lifetime of quiet cooling
  • Proven Thermal Resistance – Engineered to operate at full performance in temperatures up to 45°C, providing reliability in even the hottest environments
  • High Efficiency and Stable Output – The MWE Gold’s fullbridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable Voltage outputs
• Type: ATX 12V V2.31
• Output Capacity: 550W
• Input
  • Voltage: 100 – 240V AC
  • Current: 6.3 A
  • Frequency: 50/ 60Hz
• PFC: Active PFC
• Power Good Signal: 100 – 500 ms
• Hold Up Time: >14 ms @ 100% load
• MTBF: >100,000 Hours
• Fan: 120mm LDB Fan
• Efficiency: 90% Typically
• Protection: OVP / OPP / UVP / SCP / OTP
• Output: +3.3V @ 15A, +5V @ 15A, +12V @ 45.8A, -12V @ 0.3A, +5sb @ 2.5A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU 12V Connector, 2x 6+2pin PCI-Express Connectors, 8x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• Dimensions (BxLxH): 150.0 x 160.0 x 86.0 mm
