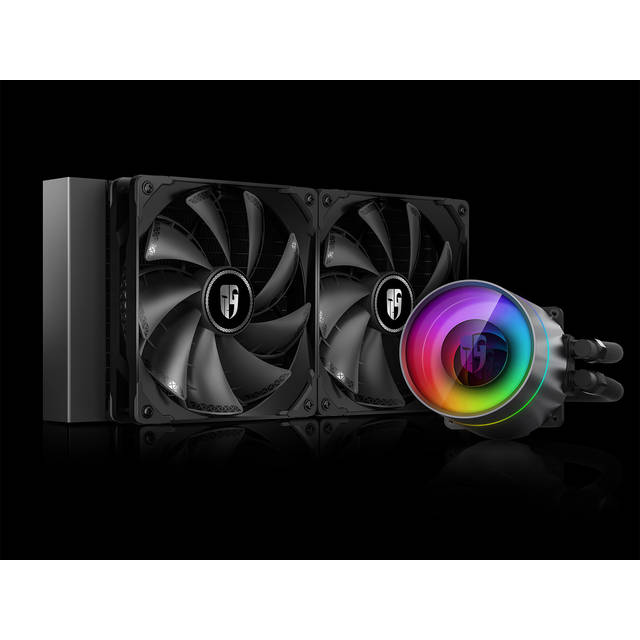

DeepCool CASTLE 280EX AIO Liquid CPU Cooler, Anti-Leak Technology, Two 280mm TF140S PWM Fans, Addressable RGB Controller and 5V 3-Pin Motherboard

Specifications

• Mfr Part Number: CASTLE 280EX
• Features:
  • Anti-Leak Technology
  • Large copper cold plate with 25% more skived fins (Supports TR4)
  • Efficient pump design optimized for performance and noise
  • Swappable custom logo
  • 5V Addressable RGB with motherboard software support
• Radiator Dimensions: 322×138×27 mm
• Intel: LGA20XX/LGA1200/1151/1150/1155/LGA1366
• AMD: TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
• Radiator Material: Aluminum
• Net Weight: 1600 g
• Tube length: 380 mm
• Pump Dimensions: 86×75×71 mm
• Pump Speed: 2550 RPM±10%
• Pump Nois : 17.8 dB(A)
• Pump Connector: 3-pin
• Pump Rated Voltage: 12 VDC
• Pump Rated Current: 0.2 A
• Pump Power Consumption: 2.4 W
• Fan Dimensions: 140×140×25 mm
• Fan Speed: 400~1600 RPM±10%
• Fan Airflow: 97.03 CFM
• Fan Air Pressure: 2.00 mmAq
• Fan Noise: ≤39.8 dB(A)
• Fan Connector: 4-pin PWM
• Bearing Type: Hydro Bearing
• Fan Rated Voltage: 12 VDC
• Fan Rated Current:0.3 A
• Fan Power Consumption: 3.6 W
• LED Type: Addressable RGB LED
• LED Connector: 3-pin(+5V-D-G)
• LED Rated Voltage: 5 VDC
• LED Power Consumption: 2.25 W（PUMP）
