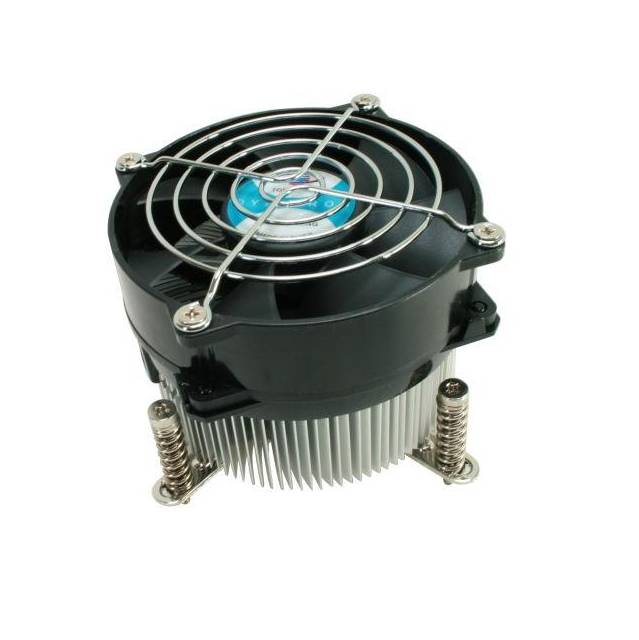

Dynatron K985 3U&Up CPU Fan For Intel Socket 1155/1150/1156

Original price was: $41.46.Current price is: $31.98.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

14 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-K985 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: K985
CPU Application: Intel Socket 1156 for 3U and up Support Intel Core i3 530 / 540, Core i5 650 / 650 / 660 / 661 / 670 / 750; Xeon Processor 3400 Series; Core i7 870 / 860; Intel Socket 1155 3U and up Support Intel Sandy Bridge Xeon Processors 1220/ 1220L/ 1225/ 1230/ 1235/ 1240/ 1245/ 1260L/ 1270/ 1275/ 1280
Heatsink Material: Aluminum Radial Fin Heatsink with Copper Inserted
Fan:
- Speed:
  - At Duty Cycle 0-20%: 700 rpm
  - At Duty Cycle 50%: 1400 rpm
  - At Duty Cycle 100%: 2500 rpm
- Bearing: Ball Bearing
- Air Flow:
  - At Duty Cycle 0-20%: 14.98 cfm
  - At Duty Cycle 50%: 29.9 cfm
  - At Duty Cycle 100%: 46.96 cfm
- Noise Level:
  - At Duty Cycle 0-20%: 14.7 dBA
  - At Duty Cycle 50%: 18.5 dBA
  - At Duty Cycle 100%: 29.85 dBA
- Air Pressure:
  - At Duty Cycle 0-20%: 0.29 mm-H2O
  - At Duty Cycle 50%: 1.07 mm-H2O
  - At Duty Cycle 100%: 2.977 mm-H2O
- Rated Voltage: 12 V
- Power:
  - At Duty Cycle 0-20%: 0.72 W
  - At Duty Cycle 20%: 1.08 W
  - At Duty Cycle 100%: 3.6 W
- Lead Wire Pin Out: Pin1-Black (-); Pin2-Yellow (+); Pin3-Green (Techometer/Signal output); Pin4-Blue (PWM)
- Fan Dimensions: 92.0 x 92.0 x 25.0 mm
Overall Dimensions: 106.0 x 106.0 x 72.6 mm
Weight: 500.0 g
RoHS Compliant
