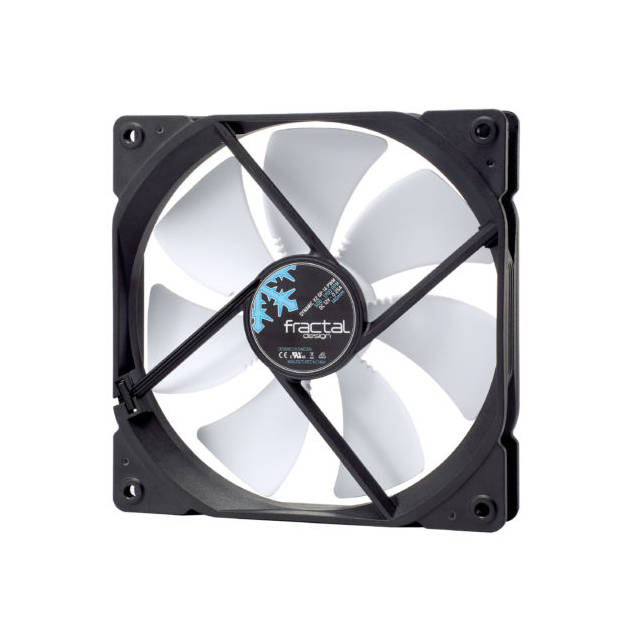

Fractal Design Dynamic X2 GP-14 PWM FD-FAN-DYN-X2-GP14-PWM-WT 140mm Case Fan

Specifications

• Mfr Part Number: FD-FAN-DYN-X2-GP14-PWM-WT
• Features:
  • High-grade LLS bearing with 100,000-hour MTBF delivers long-lasting dependability
  • PWM support offers a wide 500 to 1,700 RPM speed adjustment range for silent operation under lighter loads and maximum airflow during more demanding activity.
  • Counter-balanced magnet reduces axial tension on the bearing, resulting in less wear over time
  • Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
  • Aerodynamic stator with embedded wiring helps reduce noise and unwanted turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
  • “Trip wire” technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quiet fan environment
  • Customized design contributes to a cool running and beautiful looking build
• Rotational Speed: 1700 RPM
• Acoustical Noise: 33.7 dB (A)
• Maximum Air Flow: 105.9 CFM
• Maximum Pressure: 1.95 mm H2O
• Actual Input Power: 1.7 W
• Maximum Rated Input Current: 0.25 A
• Nominal Input Voltage: 12 V
• Minimum Startup Voltage: 6 V
• Screw Hole Pattern: 125 x 125 mm
• Connector: 4-pin fan header
• Bearing: LLS
• Number of Blades: 7
• PWM:
  • Low (0-20%) PWM Speed: 500
  • Low PWM Static Pressure: 0.5
  • Low PWM Airflow: 47.9
  • Low PWM Noise Level: <10
• MTBF: 100,000 hours
• Cable Length: 500 mm
• Cable Type: Black Ribbon Cable
• Color: White blades, Black frame
• Dimensions: 140.0 x 140.0 x 25.0 mm
• Weight: 185.0 g
