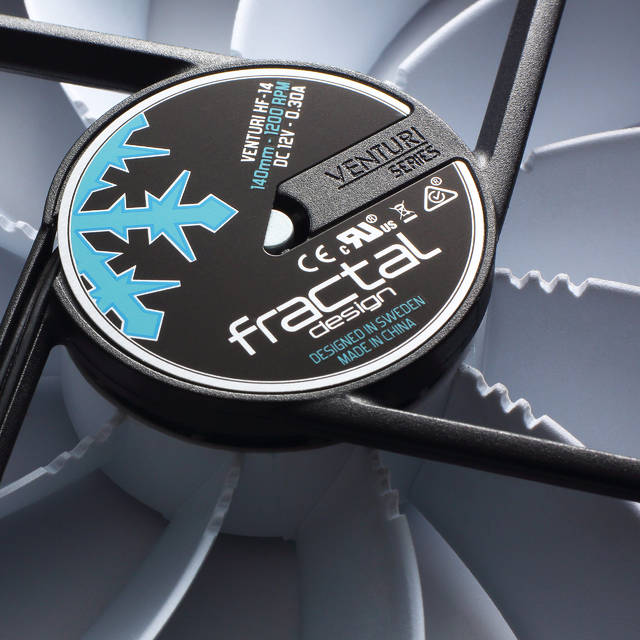

Fractal Design FD-FAN-VENT-HF14-WT Venturi HF-14 140mm High Airflow Fluid Dynamic Bearing White Computer Case Fan

Specifications

• Mfr Part Number: FD-FAN-VENT-HF14-WT
• Features:
  • Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
  • Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
  • Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
  • Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer
  • Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense heatsinks or water cooling radiators.
  • Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature. (HP PWM Version only)
  • Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence.
  • Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
  • The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
  • Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller
  • 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screwspacing). This enables the use of 140mm fans on many CPU coolers.
  • Available in 120mm and 140mm fan sizes
  • Available in two color combinations, Black blades, black corners, dark grey (“Gunmetal”) frame and White blades, black corners, black frame
• Rotational Speed: 1200 RPM
• Acoustical Noise: 26.5 dBA
• Maximum Air Flow: 118.2 CFM / 200.8 m3/h
• Maximum Pressure: 0.95 mm H2O
• Actual Input Power: 2.2 W
• Maximum Rated Input Current: 0.3 A
• Nominal Input Voltage: 12V
• Minimum Startup Voltage: 4V
• Low Speed Adapter:
  • Speed: 850 RPM
  • Static Pressure: 0.59 mm H2O
  • Air Flow: 78.5 CFM / 133.4 m3/h
  • Noise Level: 18.3 dBA
• Screw Hole Pattern: 125 x 125 mm; 105 x 105 mm
• Connector: 3-pin fan header
• Bearing: FDB
• Number of Blades: 11
• MTBF: 150,000 hours
• Cable length: 500 mm
• Cable Type: Braided all-black ribbon wire
• Color: Whiet
• Dimensions: 140.0 x 140.0 x 25.0 mm
• Weight: 202.0 g
• Package Contents:
  • Venturi Series fan
  • Screw pack with 4 metal screws
  • Low speed adapter
  • 4 additional rubber corners, with 105mm hole pattern
