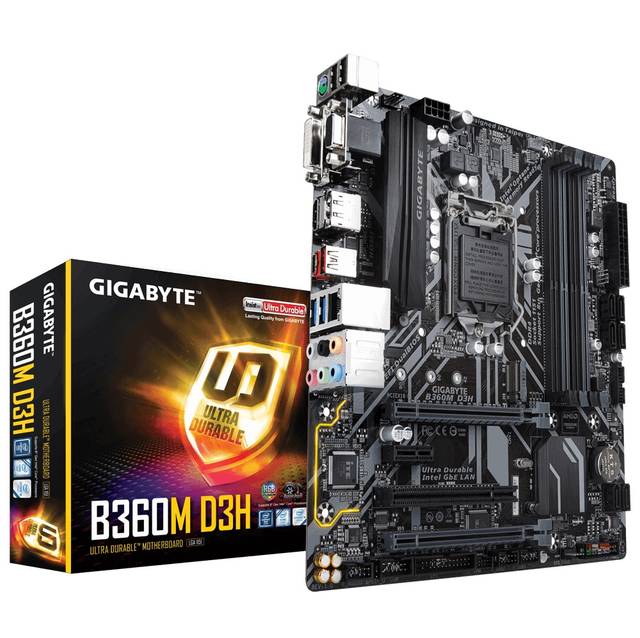

GIGABYTE B360M D3H GSM LGA1151/ Intel B360/ DDR4/ Quad CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Original price was: $179.36.Current price is: $138.36.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

30 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-B360M D3H GSM Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: B360M D3H GSM
CPU: LGA1151
- Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- L3 cache varies with CPU
Chipset: Intel B360Â Express
Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x4), 1x PCI-Express 3.0 x1 Slot, 1x PCI Slot
Multi-Graphics:Â Supports AMD Quad-GPUÂ and 2-Way CrossFireX Technology
Storage:
- SATA: 6x SATA3 Ports
- M.2: 1x M.2 Port (w/ M key), Supports type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSDÂ
Audio: Realtek ALC892Â 7.1-Channel High Definition Audio CODEC
LAN: Intel Gigabit Ethernet Controller
Ports:Â 1x USB 3.1 Gen 2 Port (Type-A rear), 5x USB 3.1 Gen1 Ports (1 Type-C rear, 2 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port , Audio I/O Jacks
Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
Form Factor: MicroATX, 24.4Â x 23.0Â cm
