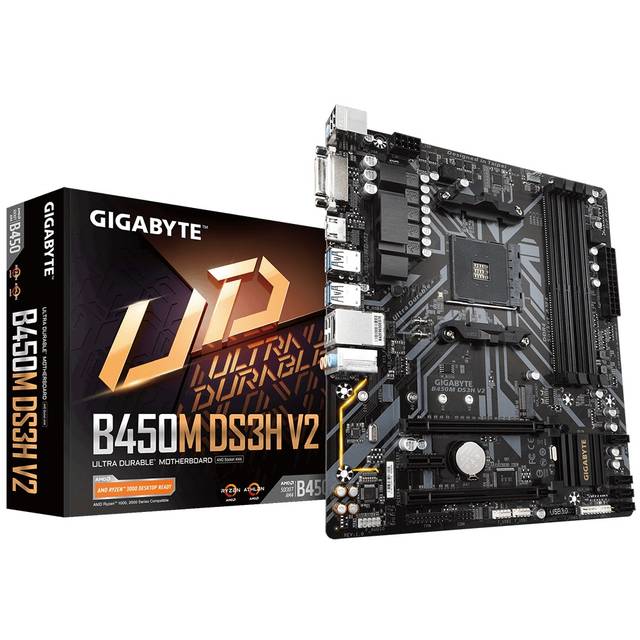

GIGABYTE B450M DS3H V2 Socket AM4/ AMD B450/ DDR4/ Quad-GPU & 2-Way CrossFire/ SATA3&USB3.1/ M.2/ Micro ATX Motherboard

Specifications

• Mfr Part Number: B450M DS3H V2
• CPU: AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
• Chipset: AMD B450
• Memory:
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
  • Integrated Graphics Processor:
    – 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.2
  • Maximum shared memory of 16 GB
  • Actual support may vary by CPU
• Audio:
  • Realtek ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    – To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • Support for S/PDIF Out
• LAN: Realtek GbE LAN chip (1000/100 Mbit)
• Expension Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    – For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
    Actual support may vary by CPU
• Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
• Storage Interface:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
    – Actual support may vary by CPU
    – Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU
  • 4 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• USB:
  • Chipset:
    – 2 x USB 3.1 Gen 1 ports available through the internal USB header
    – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • CPU:
    – 4 x USB 3.1 Gen 1 ports on the back panel
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
• Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.1 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller: iTE I/O Controller Chip
• H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
• BIOS:
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  • Support for APP Center
    – @BIOS
    - EasyTune
    – Fast Boot
    – Game Boost
    – ON/OFF Charge
    – RGB Fusion
    – Smart Backup
    – System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software:
  • Norton Internet Security (OEM version)
  • cFosSpeed
• Operating System: Support for Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 24.4cm x 21.5cm
