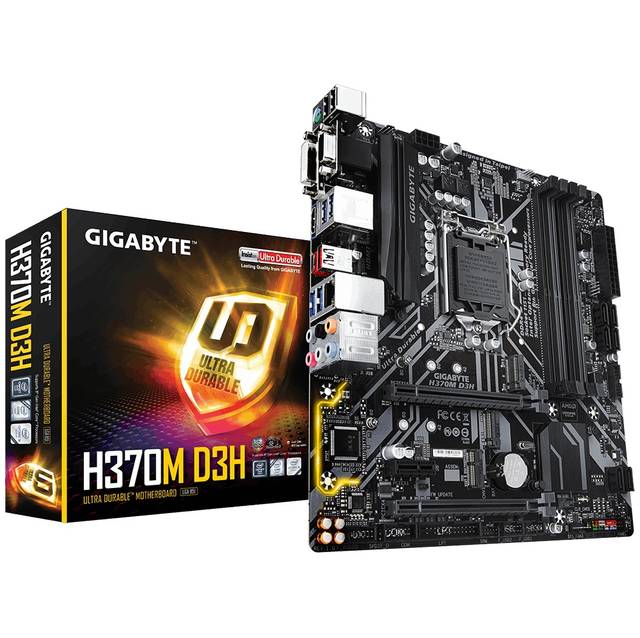

GIGABYTE H370M D3H GSM LGA1151/ Intel H370/ DDR4/ Quad-GPU CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Original price was: $208.20.Current price is: $160.61.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

3 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-H370M D3H GSM Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: H370M D3H GSM
CPU: LGA1151
- Supports 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- L3 cache varies with CPU
Chipset: Intel H370Â Express
Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x4),Â 1x PCI-Express 3.0 x1 Slot,Â 1x M.2 Socket
Multi-Graphics: Supports AMD Quad-GPU, 2-Way CrossFireX Technology
Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 2xÂ M.2 Ports (w/ MÂ Key), one supports type 2242/2260/2280/22110 SATA and PCIe x2 SSD;Â one supportsÂ type 2242/2260/2280 PCIe x4/x2 SSD
Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
LAN:Â Intel Gigabit Ethernet Controller
Ports: 1x USB 3.1Â Gen 2 Port (Type-A rear), 1x USB Type-C Port (rear, with USB 3.1 Gen 2 support), 6x USB 3.1Â Gen 1Â Ports (4 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4via headers),Â 1xÂ PS/2 keyboard/mouse Port, 1x VGA port, 1x HDMI Port, 1x DVI-D port, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
Form Factor: MicroATXÂ , 24.4 x 23.0Â cm
