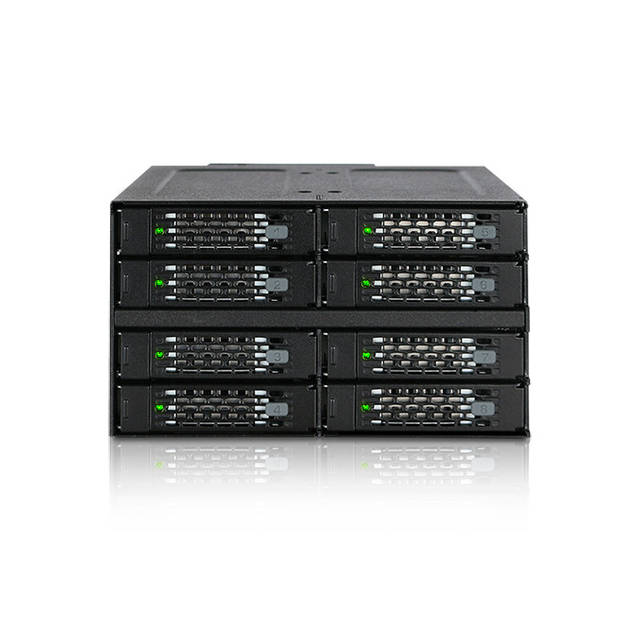

ICY DOCK ToughArmor MB508SP-B Rugged Full Metal 8 Bay 2.5 inch SAS/SATA SSD/HDD Backplane Cage for 2x External 5.25 inch Bay (Black)

Specifications

• Mfr Part Number: MB508SP-B
• Features:
  • Removable drive tray system for easy maintenance
  • Rugged heavy duty full-metal construction of all internal and external components
  • Perfect for rugged and industrial applications that must meet flammability requirements
  • Fits 8x 5-15mm 2.5″ SATA/SAS hard drives or SSDs in 2x 5.25″ external CD/DVD drive bays
  • Large 80mm cooling fan with high, low, and off settings for full control
  • The cooling fan is replaceable for maximum expandability
  • Uses 2x Mini-SAS HD port for all 8 drives
  • All 8 drives powered by 2x SATA 15-pin power cables
  • LED status lights give you drive updates at a glance
  • Optional drive ID labels to maintain order when using RAID
  • Anti-Vibration Technology (AVT) – Creates a safe environment for hard drives and SSDs
  • Active Power Technology (APT) – individual LED & cooling fan only powers up if there is a drive installed in the bay
  • Eagle-hook lock system keeps drives secured within the enclosure
  • Supports enterprise SAS drives including seagate Exos, HGST Ultrastar C series, Dell, HPE and Toshiba SAS drives
  • Supports SAS & SATA 6Gbps and hot swap
  • Supports MiniSAS HD and SATA power cables with locking latch design
  • Industry leading 3 year warranty with exceptional customer support
• Support Drive Size: 8x 2.5″ SSD / HDD
• Compatible Drive Type: SATA / SAS (Support Single Channel SAS)
• Number of Drives: 8
• Max Drive Height: 15mm
• Drive Bays: 2x external 5.25″ drive bay
• Host Interface: 2x miniSAS HD (SFF-8643)
• Power Input: 2x 15 pin SATA power connectors
• Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
• Support HDD Capacity: No Limitation
• Drive Cooling: 1x 80 mm Fan
• Structure / Material: Full Metal
• Support Hot-Swap: Yes
• Drive Activity LED Indication: Drive power – solid green; HDD access – flashing green
• SATA Connector Insertion Rate: 10,000
• Compliance: CE, RoHS, REACH
• Color: Black
• Dimensions (WxLxH): 157.9 x 146.0 x 84.0 mm
• Weight: 1460.0 g
