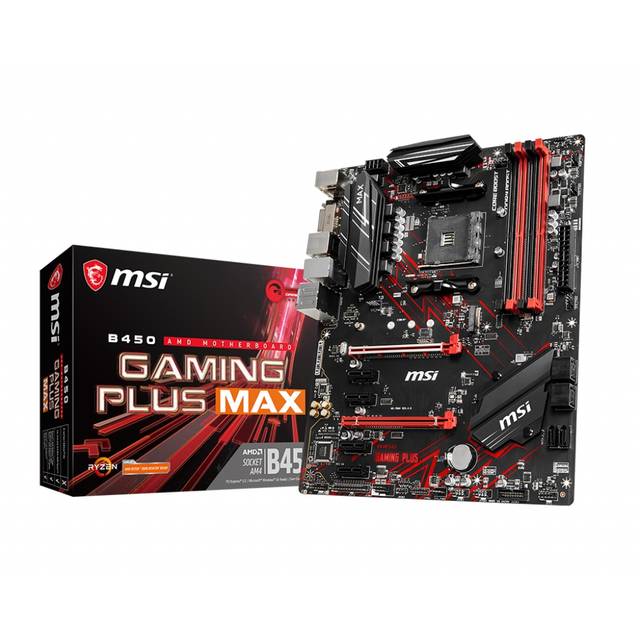

MSI B450 GAMING PLUS MAX Socket AM4/ AMD B450/ DDR4/ 2-Way CrossFire/ SATA3&USB3.2/ Turbo M.2/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: B450GPLMAX
• CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
• Chipset: AMD B450 Chipset
• Memory:
  • 4 x DDR4 memory slots, support up to 64GB
    – Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    – For AMD Ryzen Gen3 (R5/R7/R9)
    *Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000 /4133 MHz(by A-XMP OC MODE)
    – For AMD Other CPU
    *Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
• Slots:
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    – 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
    – Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
    – Athlon with Radeon Vega Graphics support x4 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 4 x PCIe 2.0 x1 slots
• Onboard Graphics:
  • 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz
  • 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz
• Multi-GPU: Supports 2-Way AMD CrossFire Technology
• Storage:
  • AMD CPU
    – 2 x SATA 6Gb/s ports
    - 1 x M.2 slot (Key M)
    *Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
  • AMD B450 Chipset
    – 4 x SATA 6Gb/s ports
• RAID:
  • AMD B450 Chipset
    – Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
• USB:
  • AMD B450 Chipset
    – 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
    – 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
    - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
  • AMD CPU
    - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
• Audio:
  • Realtek ALC892 Codec
    - 7.1-Channel High Definition Audio
• LAN: 1 x Realtek 8111H Gigabit LAN controller
• Internal Connectors:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial Port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors
• Back Panel Ports:
  • PS/2 Combo Port
  • USB 3.2 Gen1
  • LAN Port
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0 port
  • DVI-D Port
  • HDMI Port
  • USB 3.2 Gen2
• Dimension:
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
• Mounting: 9 mounting holes
• Operating System:
  • Support for Windows 10 64-bit
  • Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
