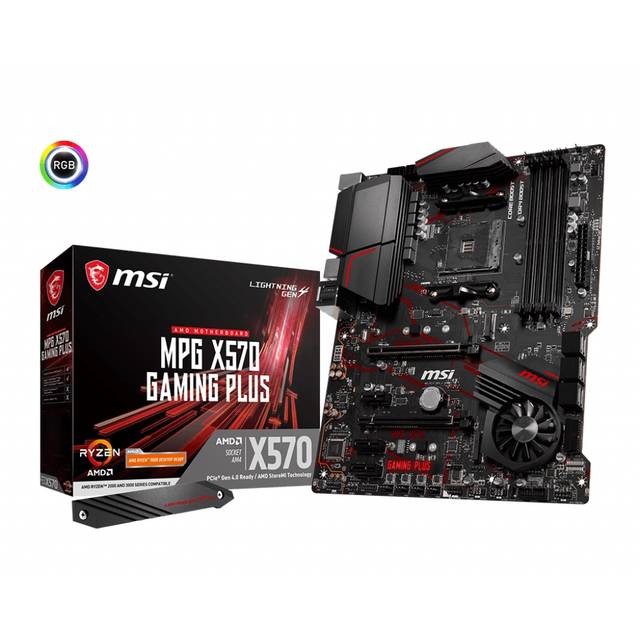

MSI MPG X570 GAMING PLUS Socket AM4/ AMD X570/ DDR4/ SATA3&USB3.2/ PCIE 4.0/ M.2/ A&GbE/ HDMI ATX Motherboard

Specifications

• Mfr Part Number: X570GAMINGPLUS (MPG X570 GAMING PLUS)
• CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
• Chipset: AMD X570 Chipset
• Memory:
  • 4x DDR4 memory slots, support up to 128GB, Supports 1866/ 2133/ 2400/ 2666Mhz by JEDEC
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
• Expansion Slots:
  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1): 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; 2nd Gen AMD Ryzen support PCIe 3.0×16 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
  • 3x PCIe 3.0 x1 slots1
• Onboard Graphics: 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz
• Multi-Graphics: Supports 2-Way AMD CrossFire Technology
• Storage:
  • AMD X570 Chipset
    – 6x SATA 6Gb/s ports
    – 2x M.2 slots (Key M): M2_1 slot(from AMD Processor): Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen), Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics), Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD X570 Chipset): Supports PCIe 3.0 x4 and SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
• RAID: AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
• USB:
  • AMD X570 Chipset:
    – 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
    – 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
  • AMD Processor:
    – 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
    – 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
• Audio:
  • Realtek ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output
• LAN: 1x Realtek 8111H Gigabit LAN Controller
• Internal Connectors:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LEDs
• Back Paner Ports:
  • Keyboard / Mouse
  • USB 3.2 Gen1 Type-A
  • LAN
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 3.2 Gen2 Type-A + C
  • USB 3.2 Gen1 Type-A
  • Optical S/PDIF out
• Dimension: 12 in. x 9.6 in. (30.4 cm x 24.3 cm);  ATX Form Factor
• Mounting: 9 mounting holes
• Operating System: Support for Windows 10 64-bit
