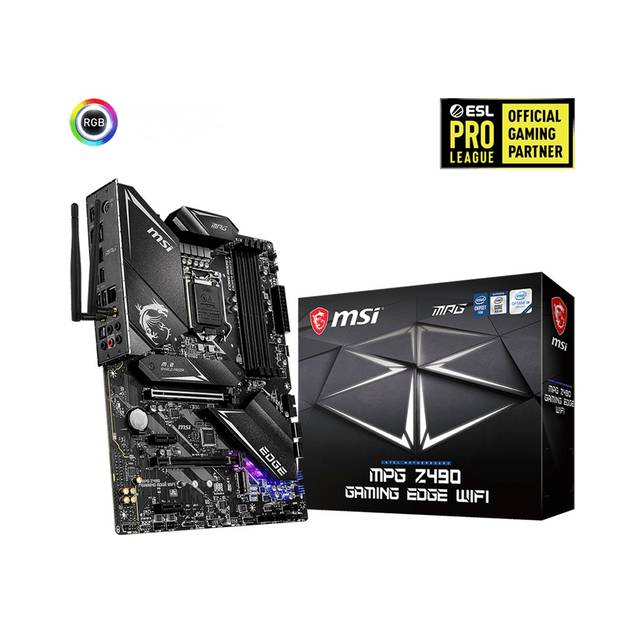

MSI MPG Z490 GAMING EDGE WIFI LGA1200/ Intel Z490/ DDR4/ 2-Way CrossFire/ SATA3&USB3.2/ M.2/ WiFi & Bluetooth/ ATX Motherboard

Specifications

• Mfr Part Number: MPG Z490 GAMING EDGE WIFI
• Processor: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
• Chipset: Intel Z490 Chipset
• Memory:
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/2666/2933 MHz
    – 1DPC 1R Max speed up to 4800+ MHz
    – 1DPC 2R Max speed up to 4266+ MHz
    – 2DPC 1R Max speed up to 4400+ MHz
    – 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel Extreme Memory Profile (XMP)
• Expansion Slots:
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (x4 mode, from PCH)
  • 2x PCIe x1 slots (from PCH)
• Onboard Graphics:
  • 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
  • 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz
• Multi-GPU: Supports AMD 2-Way CrossFire Technology
• Storage:
  • Intel Z490 Chipset
    – 6x SATA 6Gb/s ports
    – 2x M.2 slots (Key M)
    * Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    * M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
    * M2_2 slot supports 2242/ 2260 /2280 storage devices
    * Intel Optane Memory Ready
• RAID:
  • ​Intel Z490 Chipset
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    – Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
• USB:
  • ​Intel Z490 Chipset
    – 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
    – 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
    – 2x USB 2.0 ports on the back panel
    – 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G
  • ASMedia ASM3241 Chipset
    – 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
• Audio:
  • Realtek ALC1200-VD1 Codec
    – 7.1-Channel High Definition Audio
    – Supports S/PDIF output
• LAN: 1x Realtek RTL8125B-CG 2.5G LAN Controller
• WIFI & Bluetooth:
  • Intel AX201
    – Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
    – WiFi 6 Pre-Certified
    – Supports Bluetooth 5.1 , FIPS, FISMA
    – The Wireless module is pre-install in the M2 (Key-E) slot
• Internal Connectors:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x chassis intrusion connector
  • 1x Clear CMOS jumper
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x TBT connector
  • 1x RTD3 connector
• Back Panel Ports:
  • PS/2 Combo Port
  • DisplayPort
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • LAN Port
  • HD Audio Connectors
  • USB 2.0
  • HDMI Port
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Optical S/PDIF OUT
• Dimensions:
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• Mounting: 9 mounting holes
• Operating System: Support for Windows 10 64-bit
