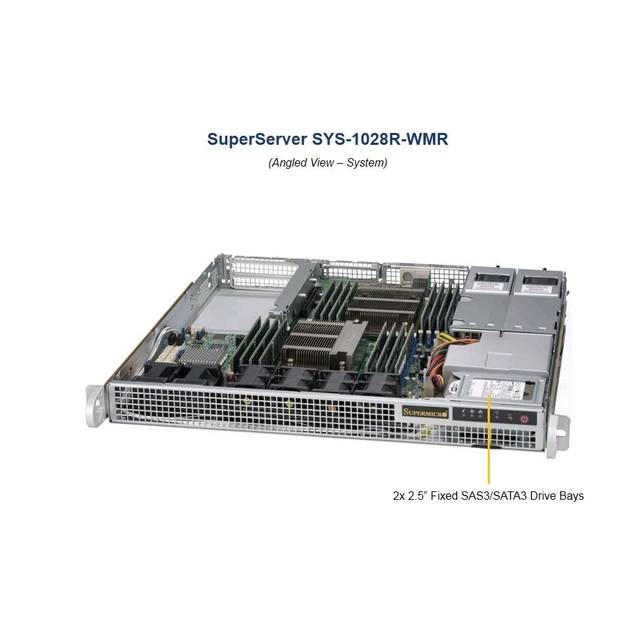

Openbox!!! Supermicro SuperServer SYS-1028R-WMR OPEN BOX Dual LGA2011 400W 1U Rackmount Server Barebone System

Specifications

• Mfr Part Number: SYS-1028R-WMR OPEN BOX
• Motherboard: Super X10DRW-E
• Processor/Cache:
  • CPU: Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP); Dual Socket R3 (LGA 2011)
  • Cores / Cache: Up to 22 Cores / Up to 55MB Cache
  • System Bus: QPI up to 9.6 GT/s
  • Note: BIOS version 2.0 or above is required
• System Memory:​
  • Memory Capacity: 16x 288-pin DDR4 DIMM slots; Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
  • Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  • DIMM Sizes:
    – RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
    – LRDIMM: 64GB, 32GB
    – 3DS LRDIMM: 128GB
  • Memory Voltage: 1.2 V
  • Error Detection: Corrects single-bit errors
• On-Board Devices:​
  • Chipset: Intel C612 chipset
  • SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
  • IPMI:
    – Support for Intelligent Platform Management Interface v.2.0
    – IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    – ASPEED AST2400 BMC
  • Network Controllers:
    – Intel i350 Dual Port Gigabit Ethernet Controller
    – Virtual Machine Device Queues reduce I/O overhead
    – Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    – 1x Realtek RTL8211E PHY (dedicated IPMI)
  • Video: ASPEED AST2400 BMC
• Input/ Output:​
  • Serial ATA: 10x SATA3 (6Gbps) ports
  • LAN:
    – 2x RJ45 Gigabit Ethernet LAN ports
    – 1x RJ45 Dedicated IPMI LAN port
  • USB:
    – 2x USB 3.0 ports (via header)
    – 4x USB 2.0 ports (rear)
  • VGA: 1x VGA port
  • Serial Port / Header: 1x Header
• Chassis:
  • ​Form Factor: 1U Rackmount
  • Model: CSE-514-R400W
• Front Panel:
  • Buttons:
    – Power On/Off button
    – System Reset button
  • LEDs:
    – Power LED
    – Hard drive activity LED
    – 2x Network activity LEDs
    – System Overheat LED
• Expansion Slots:
  • ​ PCI-Express: 2x PCI-E 3.0 x16 Full-height, Half-length slots
• Drive Bays:
  • Internal: 2x 2.5″ Fixed drive bays with bracket
• System Cooling: 4x 40x56mm PWM fan; 2x fans for AOC cooling
• Power Supply: 400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I^2 C, and PFC
  • ​AC Input: 100-240V, 50-60Hz, 6-3A
  • DC Output: +5V standby: 3A; +12V: 33A
  • DC Output With Power Distributor: +5V: 25A; +3.3V: 25A; -12V: 0.6A
  • Certification: 80 PLUS Gold Certified
• System BIOS:
  • ​BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
  • BIOS Features:
    – Plug and Play (PnP)
    – PCI 2.3
    – ACPI 1.0 / 2.0 / 3.0 / 4.0
    – USB Keyboard support
    – SMBIOS 2.7.1
    – UEFI 2.3.1
• Operating Environment / Compliance:
  • RoHS: RoHS Compliant
  • Environmental Specifications:
    – Operating Temperature: 10°C to 35°C (50°F to 95°F)
    – Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    – Operating Relative Humidity:  8% to 90% (non-condensing)
    – Non-operating Relative Humidity: 5% to 95% (non-condensing)
• Dimensions(HxWxD): 1.7″ x 17.2″ x 16.9″/ 43mm x 437mm x 429mm
• Net Weight: 16.5 lbs (7.48 kg)
• Gross Weight: 27 lbs (12.25 kg)
