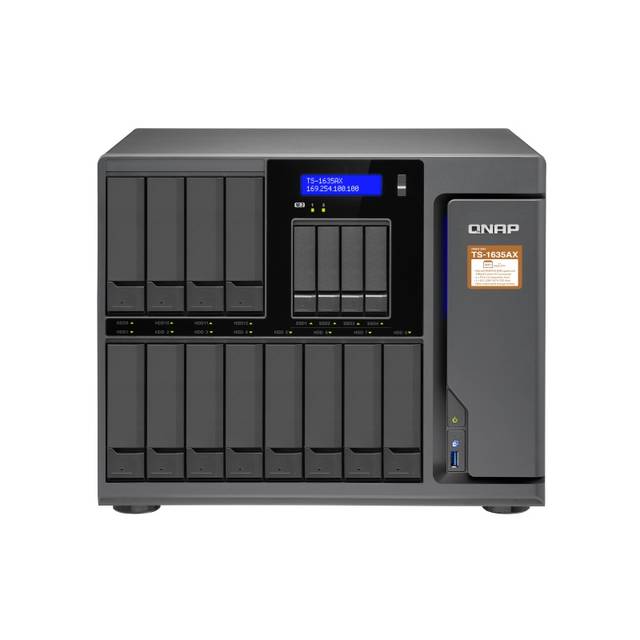

QNAP TS-1635AX-8G-US Marvell ARMADA 8040 ARMv8 Cortex-A72 1.6GHz/ 8GB DDR4/ 4GbE/ 16SATA3/ USB3.1/ 16-Bay Desktop NAS for SMB

Specifications

• Mfr Part Number: TS-1635AX-8G-US
• Hardware:
  • CPU: Marvell ARMADA 8040 ARMv8 Cortex-A72 Processor (1.6GHz Clock Speed, Quad Core)
  • Encryption Engine
  • System Memory: 8GB DDR4 (1x 8GB)
  • Maximum Memory: 16GB (1x 16GB)
  • Memory Slot: 1x DDR4 Long-DIMM slot
  • Drive Bay: 12x 3.5-inch SATA 6 Gbps bays, 4x 2.5-inch SATA 6 Gbps bays
  • Drive Compatibility:
    • 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
    • 2.5-inch bays: 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • M.2 SSD Slot: 2x M.2 SATA 6 Gbps SSD slots (2280 form factor)
  • LAN Port: 2x RJ45, 2x 10GbE SFP+
  • USB Port: 3x USB 3.1 Gen 1 Type-A
  • USB One Touch Copy: Front – USB 3.1 Gen 1 Type-A
  • Audio: 1x 3.5 mm line-out jack, Speaker, Alarm buzzer
  • PCIe Slot: Slot 1 – 3.0 x 2, Slot 2 – 3.0 x 1
  • Sound Level: 23.0 dB(A)
  • Operating System: QTS 4.3.4 (embedded Linux)
• Network & Virtual Switch:
  • TCP/IP – Dual stack (IPv4 and IPv6)
  • Failover, multi-IP settings, port trunking/NIC teaming
  • DHCP server and client
  • USB Wi-Fi adapter
  • Virtual switch
    • Network Address Translation (NAT)
    • Spanning Tree Protocol (STP)
  • WirelessAP Station
• Security:
  • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
  • Host access control for shared folders (CIFS/SMB)
  • 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS)
  • 256-bit external drive encryption (AES)
  • Importing of SSL certificates from Let’s Encrypt
  • Instant alerts through email, SMS, push service, audio, and LCD panel
  • 2-step verification
• Storage Management:
  • Storage space utilization monitoring
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Supported RAID types – RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
  • RAID hot spare and global hot spare
  • RAID rebuild speed customization
  • Advanced secure data erase
  • Storage pools
  • Qtier Technology (automated storage tiering)
    • Automatic or scheduled data tiering
    • IO-aware auto tiering
    • Shared folder tiering on demand
  • Snapshots
    • Volume and LUN snapshots
    • Snapshot Dashboard
    • Snapshot Manager
    • Snapshot Cloning
    • Snapshot Vault
    • Snapshot Replica
    • Unify Snapshot Directory
    • Support for Windows previous versions (CIFS/SMB)
    • Snapshot Agent for Microsoft Windows and VMware vSphere
    • Max. 64 snapshots per volume/LUN
    • Max. 256 snapshots per NAS
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion
  • Online RAID level migration
  • SMART data migration
  • Storage expansion using QNAP expansion units
  • JBOD enclosure roaming
  • SSD read-only or read-write cache
  • Bad block scan and hard drive S.M.A.R.T test
  • Bad block recovery and RAID recovery
  • Bitmap support
• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
• Form Factor: Desktop
• Fan: System – 3x 9.2 cm fan (12V DC); CPU – 1x 6 cm fan (12V DC)
• Power Consumption: HDD sleep – 39.74 W; In Operation – 76.69 W (with 12x 1 TB HDDs and 4x 120 GB SSDs)
• Power Supply: 250 W, 100 – 240V AC, 50/60 Hz
• Dimensions (WxDxH): 14.56 x 12.59 x 11.96 inch / 369.89 x 319.80 x 303.84 mm
• Weight: 28.79 lbs / 12.06 kg
