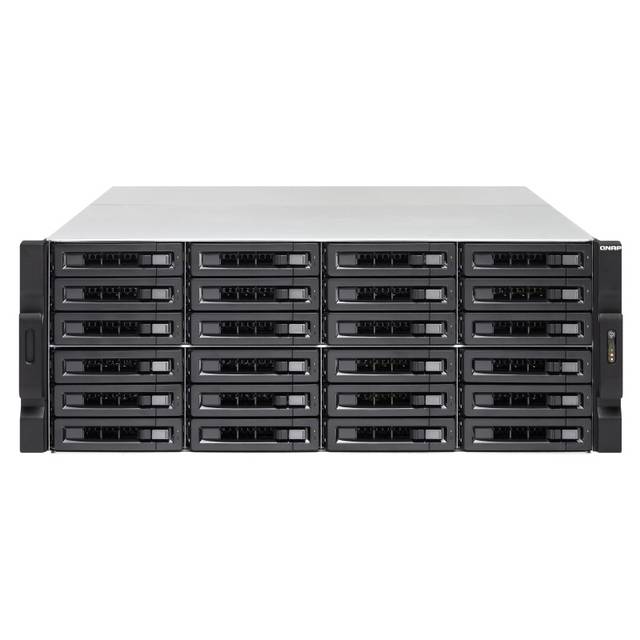

QNAP TS-2477XU-RP-2700-16G-US AMD Ryzen 7 2700 3.2GHz/ 16GB DDR4/ 2GbE/ 24SATA3/ USB3.1/ 24-Bay 4U Rackmount NAS for SMB

Specifications

• Mfr Part Number: TS-2477XU-RP-2700-16G-US
• Hardware:
  • CPU: AMD Ryzen 7 2700 Processor (3.2GHz Clock Speed, 8-core)
  • Encryption Engine: AES-NI
  • System Memory: 16GB DDR4 (2x 8GB)
  • Maximum Memory: 64GB (4x 16GB)
  • Memory Slot: 4x Long-DIMM Slots
  • Drive Bay: 24x 3.5-inch SATA 6 Gbps bays
  • Drive Compatibility: 3.5-inch bays – 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • LAN Port: 2x RJ45 LAN Ports, 2x 10GbE SFP+ Ports
  • USB Port: 2x USB 3.1 Gen 2 Ports (10 Gbps, 1 Type-C, 1 Type-A), 4x USB 3.0 Ports (Type-A)
  • PCIe Slot: Slot 1 – Gen3 x4; Slot 2 – Gen3 x8 (if Slot 1 is occupied, then the speed becomes Gen3 x4); Slot 3 – Gen3 x8 (if Slot 4 is occupied, then the speed becomes Gen3 x4); Slot 4 – Gen3 x4
  • HDMI Output: Optional – With PCIe expansion card
  • Sound Level: 27.5 dB(A)
  • Operating System: QTS 4.3.4 (embedded Linux)
• Network & Virtual Switch:
  • TCP/IP – Dual stack (IPv4 and IPv6)
  • Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  • DHCP server and client
  • USB Wi-Fi adapter
  • Virtual switch
    • Virtual switch editing in Virtualization Station
    • Combining virtual machines and containers in the same virtual switch
    • Network Address Translation (NAT)
    • Spanning Tree Protocol (STP)
  • WirelessAP Station
• Security:
  • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
  • Host access control for shared folders (CIFS/SMB)
  • AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
  • 256-bit external drive encryption (AES)
  • Importing of SSL certificates from Let’s Encrypt
  • Instant alerts through email, SMS, push service, audio, and LCD panel
  • 2-step verification
• Storage Management:
  • Storage space utilization monitoring
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Supported RAID types – RAID 0, 1, 5, 6, 10, 50, JBOD, Single
  • RAID hot spare and global hot spare
  • RAID rebuild speed customization
  • Advanced secure data erase
  • Storage pools
  • Qtier Technology (automated storage tiering)
    • Automatic or scheduled data tiering
    • IO-aware auto tiering
    • Shared folder tiering on demand
  • Snapshots
    • Volume and LUN snapshots
    • Snapshot Dashboard
    • Snapshot Manager
    • Snapshot Cloning
    • Snapshot Vault
    • Snapshot Replica
    • Unify Snapshot Directory
    • Support for Windows previous versions (CIFS/SMB)
    • Snapshot Agent for Microsoft Windows and VMware vSphere
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion
  • Online RAID level migration
  • SMART data migration
  • Storage expansion using QNAP expansion units
  • JBOD enclosure roaming
  • SSD read-only or read-write cache
  • Bad block scan and hard drive S.M.A.R.T test
  • Bad block recovery and RAID recovery
  • Bitmap support
• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
• Form Factor: 4U Rackmount
• Fan: 4x 9.2 cm fans (12 V DC)
• Power Consumption: In operation – 143.97 W
• Power Supply: 2x 800 W, 100 – 240 V AC, 50/60 Hz
• Dimensions (WxDxH): 481.04 x 672.02 x 176.15 mm
• Weight: 22.66 kg
