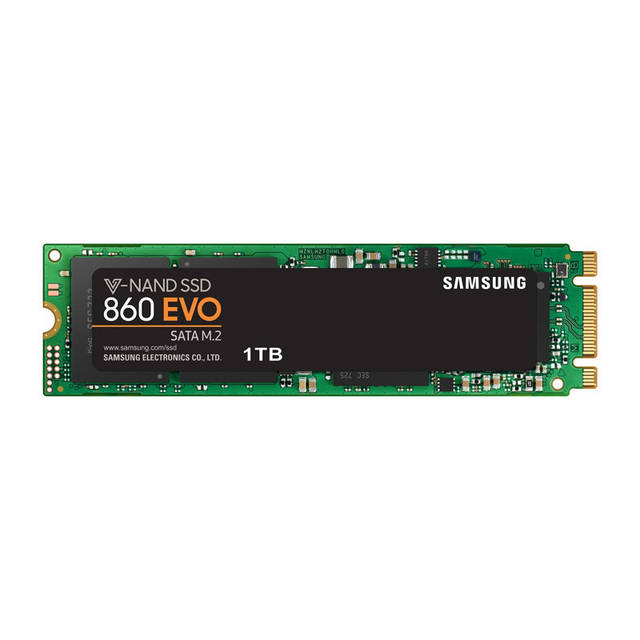

Samsung 860 EVO Series 1TB M.2 2280 SATA3 Solid State Drive, Retail (Samsung V-NAND 3bit MLC)

Specifications

• Mfr Part Number: MZ-N6E1T0BW
• Capacity: 1TB
• Form Factor: M.2 2280
• Interface: SATA 6Gb/s (Compatible with SATA 3Gb/s and SATA 1.5Gb/s)
• NAND Flash: Samsung V-NAND 3bit MLC
• Controller: Samsung MJX Controller
• DRAM Cache Memory: 1GB LPDDR4
• Performance:
  • Sequential Read Speed: 550 MB/s
  • Sequential Write Speed: 520 MB/s
  • 4K Random Read Speed (QD1): Up to 10K IOPS
  • 4K Random Write Speed (QD1): Up to 42K IOPS
  • 4K Random Read Speed (QD32): Up to 97K IOPS
  • 4K Random Write Speed (QD32): Up to 88K IOPS
• MTBF: 1,500,000 hours
• Power Consumption:
  • Idle (DIPM on): 50 mW
  • Active Read/Write (Average): 3 W
  • Device Sleep: 2mW
• Shock: 1500G, duration – 0.5m, 3 axis (Non-Operating)
• Vibration: 20~2,000Hz, 20G (Non-Operating)
• Temperature: 0°C to 70°C (Operating); -45°C to 85°C (Non-Operating)
• Dimensions: 80.15x 22.15 x 2.38 mm (Max)
