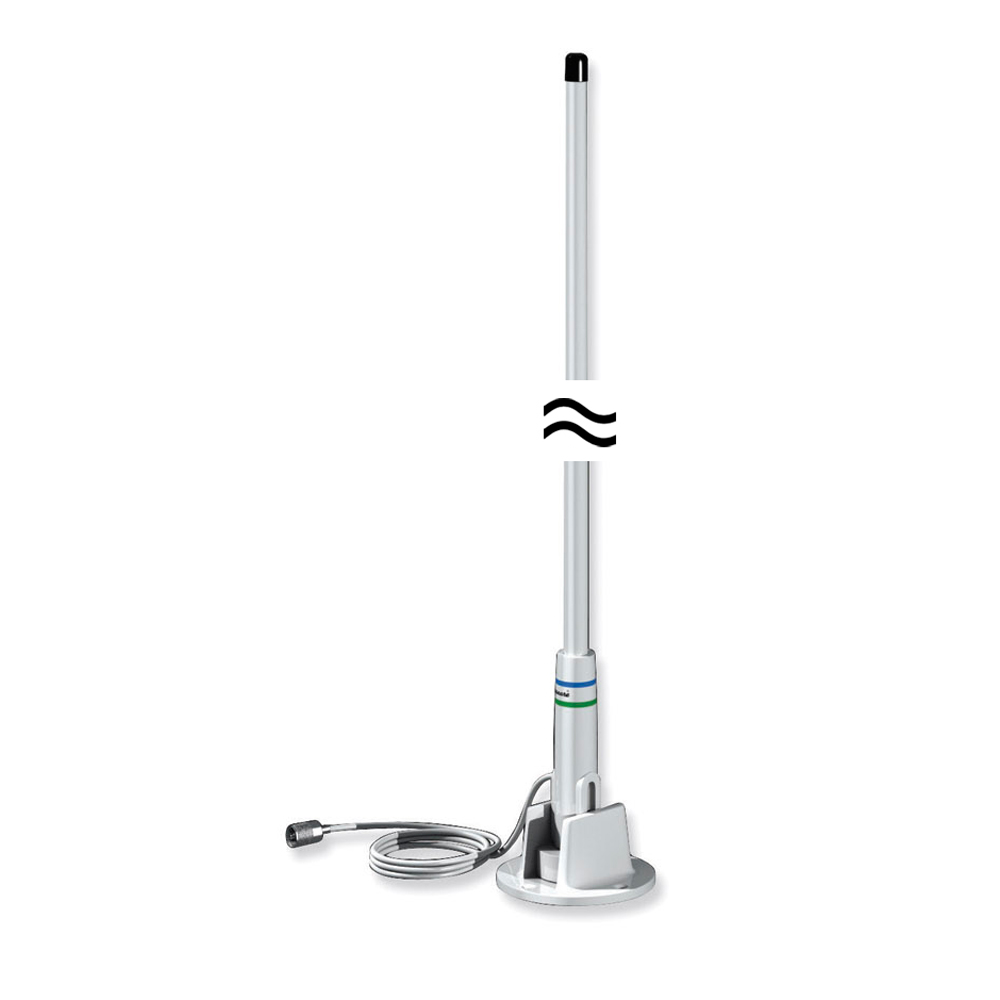

Shakespeare 420 5′ VHF Antenna
Original price was: $187.95.$93.77Current price is: $93.77.
Style 420 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Shakespeare’s most economical 5′ antenna package. The 420 is a great, basic 3dB antenna for day-to-day cruising in calm to moderate seas. The antenna has an integral polycarbonate Lift N Lay mount for deck mounting, and comes with a leveling plate and installation hardware. Use a Style 4000 Angle Bracket (sold separately) for side mounting.
- Brass and copper elements
- Includes 15′ RG-58 cable and a PL-259 connector
- Integral deck mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance: | (ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15′ RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Out of stock
Fast Shipping
Timely delivery with all orders
30 Day Return
Return accepted on selected items
24/7 Help
Help is just around the corner.
SKU: 10605
Manufacturer: Shakespeare
Manufacturer Part Number: 420
UPC Code: 719441100049
Style 420 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Shakespeare’s most economical 5′ antenna package. The 420 is a great, basic 3dB antenna for day-to-day cruising in calm to moderate seas. The antenna has an integral polycarbonate Lift N Lay mount for deck mounting, and comes with a leveling plate and installation hardware. Use a Style 4000 Angle Bracket (sold separately) for side mounting.
- Brass and copper elements
- Includes 15′ RG-58 cable and a PL-259 connector
- Integral deck mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance: | (ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15′ RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
| Weight | 3.2 lbs |
|---|
