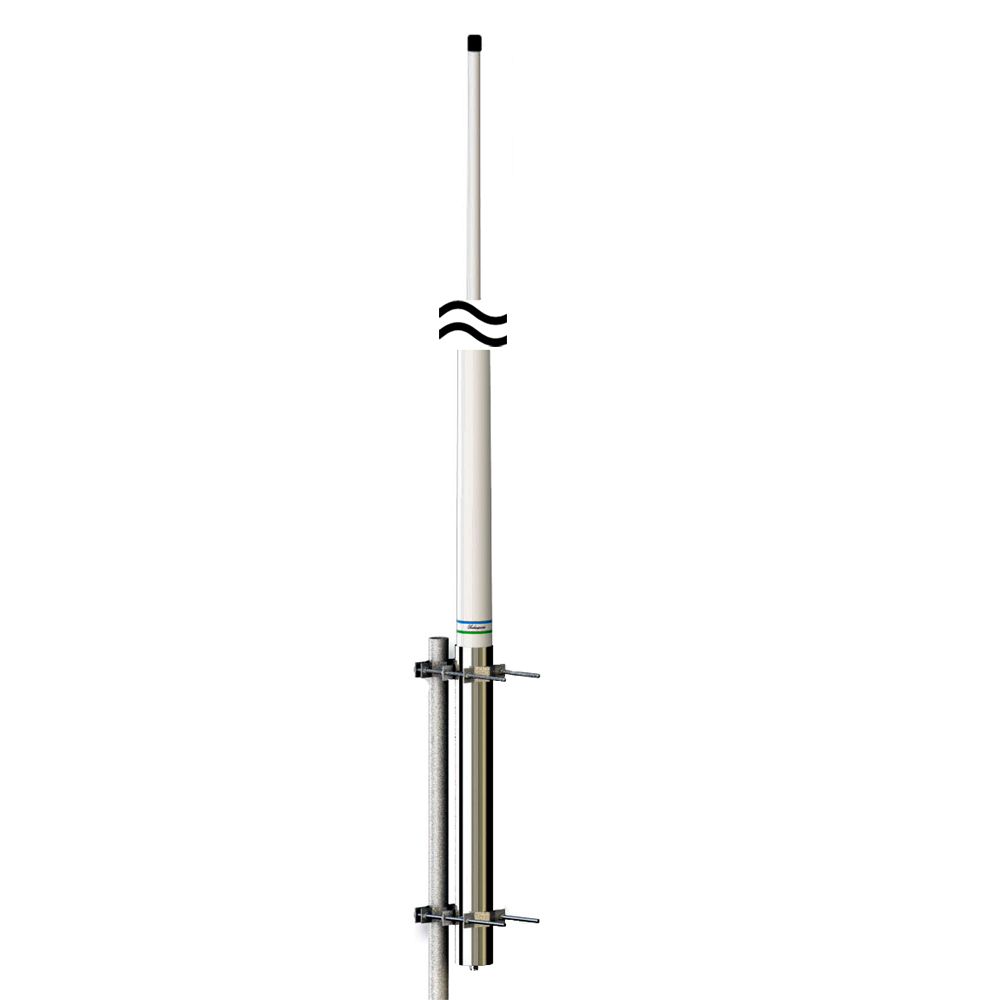

Shakespeare 476 21′ VHF Antenna

Original price was: $1,422.95.Current price is: $689.93.

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Style 476 VHF 10 dB

Phased 1/2-wave elements in a collinear array with a broadband matching section, and a coaxial choking sleeve

The Style 476 antenna is designed to get the message through when all others fail. Its unique design puts the signal on the horizon, providing gain in all directions. It’s the first choice for heavy duty seagoing applications, such as workboats, tugs, tidal well service boats, etc, and an excellent antenna for land-based stations.

Brass and copper internal elements

SO-239 connector at the base

The 476 has a 2-3/4″ diameter x 26" long 6061-T-6 aluminum sleeve which can be strapped directly to a mast or used with Shakespeare Style 483 Clamp Set or Style 484 Wall Mounting Brackets.

One section

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	(within 2.0:1 SWR): 10MHz
SWR:	1.5:1 at 156.8 MHz
Impedance:	(ohms): 50
Gain:	10 dB
Max Input (Watts):	350
DC Ground:	YES
Termination:	SO-239 connector
Height (feet):	21
Polarization:	Vertical
Radiation pattern:	Omni-directional

Out of stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: 10612 Categories: Antennas, Communication

Description

SKU: 10612

Manufacturer: Shakespeare

Manufacturer Part Number: 476

UPC Code: 719441100063
