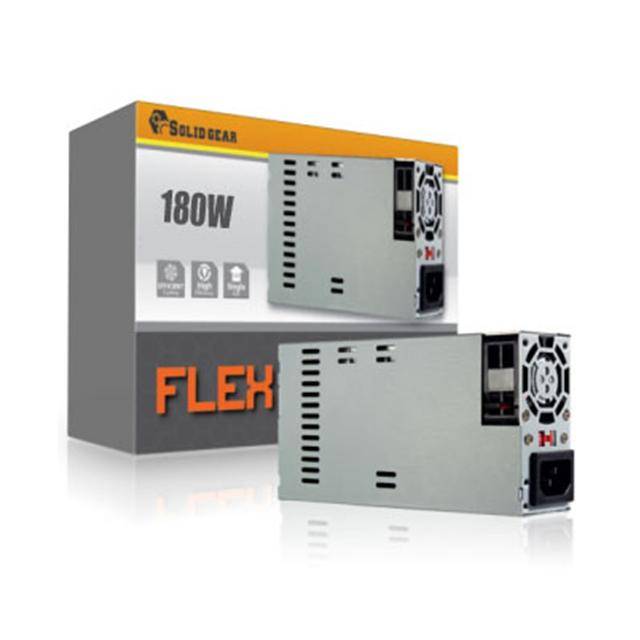

Solid Gear SDGR-FLEX180 180W Mini-ITX / FLEX ATX Power Supply

Name: Solid Gear SDGR-FLEX180 180W Mini-ITX / FLEX ATX Power Supply
SKU: KOAH-SDGR-FLEX180
Availability: InStock

Original price was: $43.26.Current price is: $33.37.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

4 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-SDGR-FLEX180 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: SDGR-FLEX180
Features:
- Mini-ITX/FLEX ATX type
- Supports Intel & AMD Socket
- Low ripple and noise
- Over voltage protection
- Over power protection
- 100% hi-pot test
- Short Circuit protection
- Thermal overload cut-off protection
- Stained SECC Steel Material
- 15″ long cables
- High efficiency and reliability
- Energy efficiency
Maximum Power: 180W
Input:
- Voltage: 100-240V
- Current: 100A max cold start
- Frequency Range: 47/63Hz
Regulation:
- Line: +/-1% typical
- Load: +/- 5% typical
Output Ripple: Noise – 1%
Fan: 1x 40mm Cooling Fan
Output: +3.3V @ 6A, +5V @ 8A, +12V @ 9A, -12V @ 0.3A, -5V @ 0.1A, +5Vsb @ 2.0A
Connectors: 1x 20+4pin Main Connector, 1x 4pin 12V Connector,Â 2x 15pin SATA Connectors, 2x 4pin Molex Connectors, 1x 4pin Floppy Connector
MTBF (Full Load): > 20,000 Hours
EnergystarStand by: < 1W
Dimensions (WxDxH):Â 3.250 xÂ 6.000 xÂ 1.625Â inch
Weight: 2.0 lbs
