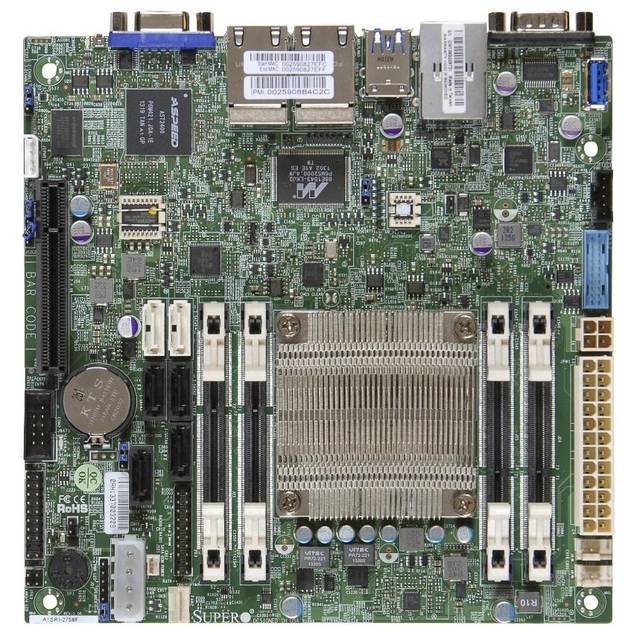

Supermicro A1SRI-2558F-B Intel Atom C2558/ DDR3/ SATA3USB3.0/ V&4GbE/ Mini-ITX Motherboard & CPU Combo

Original price was: $434.40.Current price is: $335.11.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

7 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-A1SRI-2558F-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: A1SRI-2558F-B
CPU (Included): Intel Atom C2558 Processor; Supports up to 15W TDP (Quad-Core)
Chipset: System-on-Chip
Memory: 4x 204pin DDR3-1600/1333 SODIMM Slots, ECC, Max Capacity of 64GB
Slots: 1x PCI-Express 2.0 x8 Slot
SATA: 2x SATA3 Ports, 4x SATA2 Ports
Video: Aspeed AST2400 Graphics
LAN: C2000 SoC I354 Quad Gigabit Ethernet Controller
Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 2x USB 2.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Mini-ITX, 6.75 x 6.75 inch / 17.145 x 17.145 cm
Intel Atom C2558 is included with this motherboard.
RoHS Complaint
