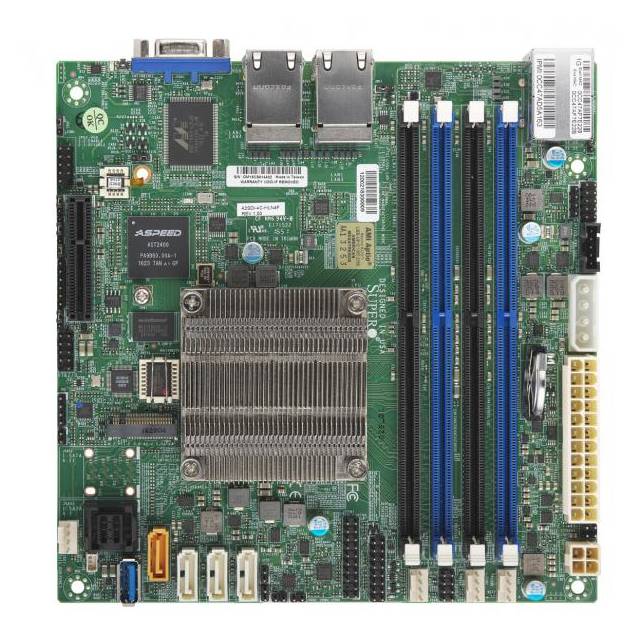

Supermicro A2SDI-4C-HLN4F-O Intel Atom C3558/ DDR4/ SATA3&USB3.0/ M.2/ V&4GbE/ Mini-ITX Motherboard & CPU Combo

Original price was: $528.13.Current price is: $407.42.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

3 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-A2SDI-4C-HLN4F-O Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: A2SDI-4C-HLN4F-O
CPU (Included): Intel Atom C3558 Processor; Supports up to 16W TDP (Quad-Core)
Chipset: System-on-Chip
Memory: 4x DDR4-2400/ 2133/ 1866/ 1600MHz DIMM Slots, Support up to 128GB ECC REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
Slots: 1x PCI-Express 3.0 x4 Slot
Storage:
- SATA: 8x SATA3 Ports
- M.2: 1x M.2 Port (supported M-Key 2242/ 2280 & SATA & PCI-Express 3.0 x2)
Video: Aspeed AST2400 BMC Graphics
LAN: Quad LAN with Intel C3000 SoC Gigabit Ethernet Controller
Ports: 1x USB 3.0 Port (1 Type A via header), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 4x RJ45 LAN Ports
Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
Intel Atom C3558 is included with this motherboard.
RoHS Complaint
