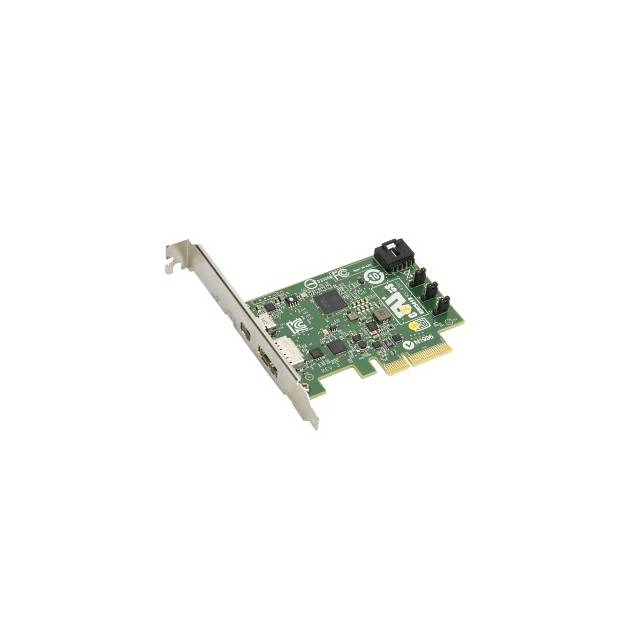

Supermicro AOC-TBT-DSL5320 Thunderbolt 2 Add-on Card

Name: Supermicro AOC-TBT-DSL5320 Thunderbolt 2 Add-on Card
SKU: KOAH-AOC-TBT-DSL5320
Availability: InStock

Original price was: $250.55.Current price is: $193.28.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

2 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-AOC-TBT-DSL5320 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: AOC-TBT-DSL5320
Form Factor: Single slot (3.71″ length x 2.99″ height) with full height bracket
Chipset: DSL5320 Thunderbolt 2 controller (Falcon Ridge)
Thunderbolt Connector: 1
DisplayPort Connector: 1
DisplayPort Revision: 1.2
PCIe Connection: PCIe 2.0 x4 from PCH PCIe slot
GPIO Connector: Needs GPIO cable to TBT GPIO header on MB (Supported on X10DAi/C/X, X10DAL and X10DRG-Q)
Thunderbolt Bandwidth: 20 Gbps
TBT AIC Power Consumption: 4.1W max
