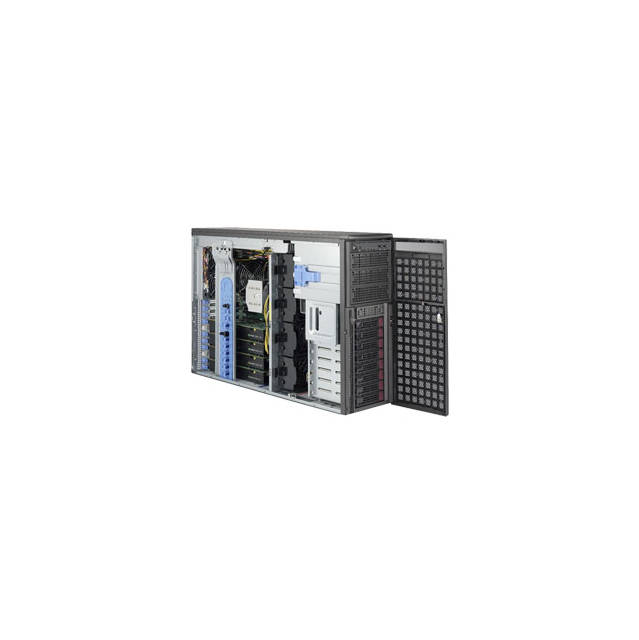

Supermicro GPU SuperWorkstation SYS-7049GP-TRT Dual LGA3647 2200W 4U Rackmountable/Tower Workstation Barebone System (Dark Gray)

Specifications

• Mfr Part Number: SYS-7049GP-TRT
• Motherboard: Super X11DPG-QT
• Processor: Dual Socket P LGA3647
  • Support Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W with IVR
  • Support Up to 28 Cores with Intel HT Technology
  • GPU Support Matrix
• Chipset: Intel C621
• Memory: 16x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Support up to 2TB ECC 3DS Load Reduced Memory and 1TB ECC/REG Memory
• Slots: 6x PCI-Express 3.0 x16 Slots (double-width), 1x PCI-Express 3.0 x8 slot (run at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2500 BMC Graphics
• LAN: Intel X550 Dual-Port 10-Gigabit Ethernet Controller
• Drive Bays: 8x Hot-swap 3.5″ drive bays
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 4U Rackmountable / Tower
• Power Supply: 2200W 80 PLUS Titanium Certified Redundant Power Supplies w/ PMBus
• System Cooling: 4x Heavy duty fans, 4x Rear exhaust fans, 2x Active heatsink with optimal fan speed control
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power status, Hard Drive Activity, Network Activity, System Overheat & Power Fail
• Color: Dark Gray
• Dimensions (WxDxH ): 7.0 x 26.5 x 18.2inch / 178.0 x 673.0 x 462.0mm
• Weight: 46 lbs / 20.9 kg
• RoHS Compliant
