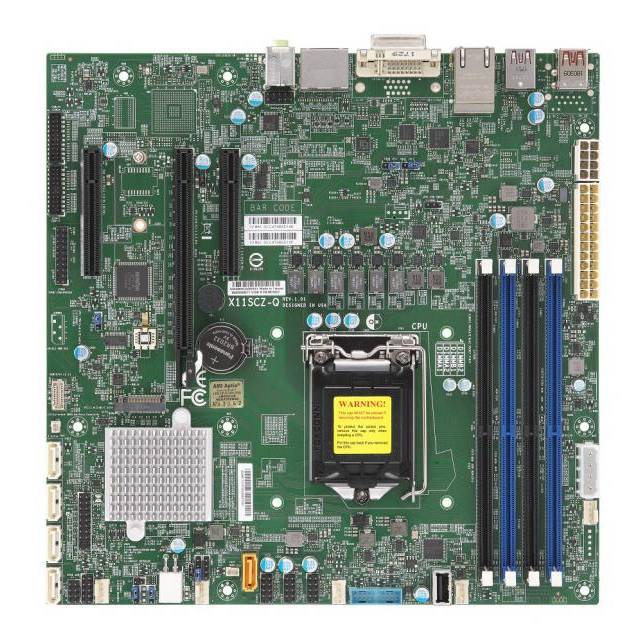

Supermicro MBD-X11SCZ-Q-O LGA1151/ Intel Q370/ DDR4/ USB3.1/ A&2GbE/ MicroATX Motherboard

Original price was: $459.64.Current price is: $354.58.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

1 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11SCZ-Q-O Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: MBD-X11SCZ-Q-O
CPU: Single Socket H4 LGA1151
- Supports 8th/9th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports up to 95W TDP
Chipset: Intel Q370
Memory: 4x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM slots, Non-ECC, Unbuffered, Max Capacity of 64GB
Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x4 Slots (in x8 slot)
SATA: 5x SATA3 Ports, Supports RAID 0, 1, 5, 10
Audio: ALC 888S High Definition Audio CODEC
LAN: Intel PHY I219LM and Intel I210-AT Gigabit Ethernet Controllers
Ports: 6x USB 3.1 Gen2 Ports (3 Type A Rear, 1 Type C Rear, 2 via headers), 2x USB 3.1 Gen1 Ports (via header), 7x USB 2.0 Ports (6 via headers, 1 Type A), 1x DVI-D Port, 2x Display Ports, 3x Independent Displays Ports, 4x Serial Ports (via headers), 2x RJ45 LAN Ports
Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
RoHS Compliant
