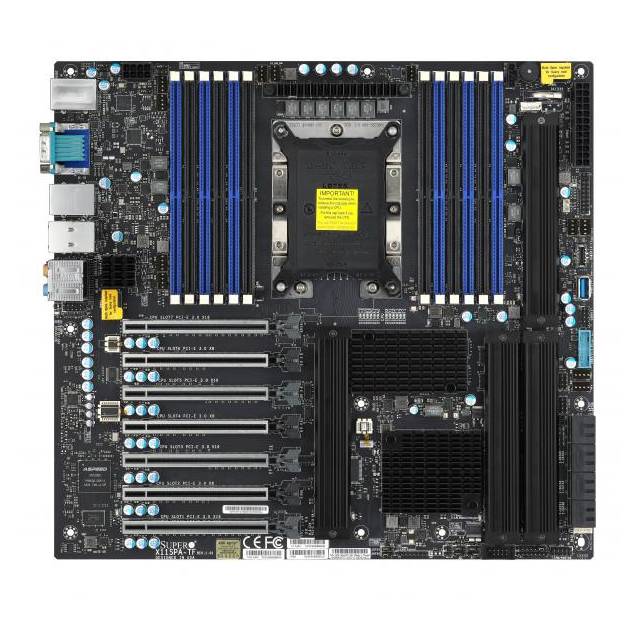

Supermicro MBD-X11SPA-T-O Single LGA3647/ Intel C621/ DDR4/ 8 SATA3/6GbE Motherboard

Specifications

• Mfr Part Number: MBD-X11SPA-T-O
• CPU: Single Socket LGA-3647
  • Support Intel Xeon Scalable Processors
  • CPU TDP support 205W
  • Up to 28 cores
• Chipset: Intel C621
• Memory: Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots; Xeon-W 32xx supports up to 2TB 3DS ECC RDIMM/LRDIMM; Xeon-W 32xx supports up to 1TB 3DS RDIMM/LRDIMM; Xeon-W32xx series processors don’t support DCPMM. DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128GB 1.2V
• Slots: 4x PCI-Express 3.0 x16 Slot ; 3 x PCI-E 3.0 x8 (in x16 slot); PCI-Ex16 Slot1( shares with M.2)/Slot2 (shares with)/Slot3(NA/16,8/8)/Slot4 (shares with) /Slot5(NA/16,8/8)/Slot6 (shares with)/Slot7(NA/16,8/8)
• SATA: Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Video: 1 VGA port, VGA connector is dedicated for IPMI.
• LAN: 1 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 10GBase-T ports, 1 RJ45 Dedicated IPMI LAN port
• Ports: 2x USB 2.0 Ports (2 headers, Type A, 6x USB 3.1 Gen1 ports(4 Rears Type A, 2 headers), 4x USB 3.1 Gen2 ports(1 Rear Type A+ 1 Rear Type C, Type A+1 Type C)
• Form Factor: E-ATX
• Dimensions: 12.0 x 13.0 inch / 30.48 x 33.02 cm
