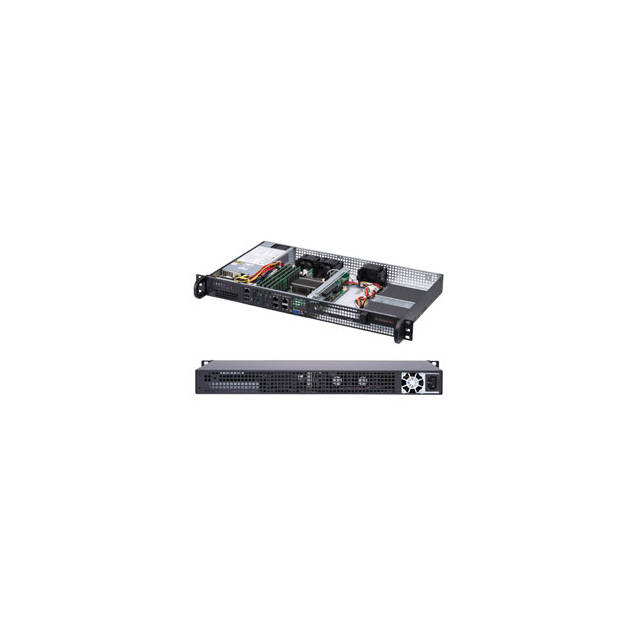

Supermicro SuperServer SYS-5019A-FTN4 FCBGA 1310 200W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-5019A-FTN4
• Motherboard: Super A2SDi-8C-HLN4F
• Processor: Single socket FCBGA 1310
  • Supports Intel Atom C3758 processor
  • Support up to 25W TDP
• Chipset: N/A
• Memory: 4x DDR4-2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Supports up to 256GB DDR4 ECC/REG Memory or up to 64GB DDR4 ECC/non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x4 Slot , 1x M.2 PCI-E 3.0 x2, M Key 2242/2280
• SATA: 4x SATA3 Ports
• Video: BMC Integrated ASPEED AST2400 Graphics
• LAN: Quad Gigabit Ethernet LAN via Intel C3000 SoC; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 2x 3.5″ or 4x 2.5″ internal hard drive bays (optional)
• Ports: 2x USB 2.0 Ports (rear), 1x VGA Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 200W Gold Certified Low Noise AC-DC Power Supply w/ PFC
• System Cooling: 2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard drive activity, Network Activity, System Overheat, Information LED (temp., status)
• Color: Black
• Dimensions (WxDxH): 17.2 x 9.8 x 1.7 inch / 437.0 x 249.0 x 43.0 mm
• Weight: 8.0 lbs / 3.62 kg
• RoHS Compliant
