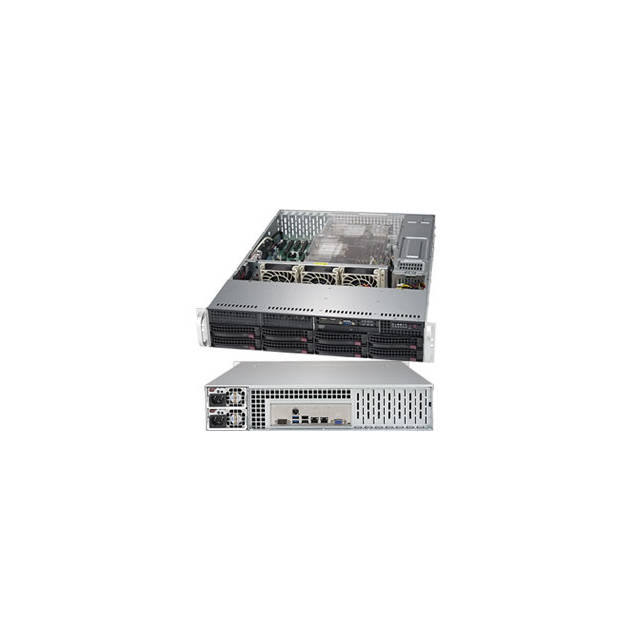

Supermicro SuperServer SYS-6029P-TR Dual LGA3647 1000W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6029P-TR
• Motherboard: Super X11DPi-N
• Processor: Dual LGA3647
  • Intel Xeon Scalable Processors
  • Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W with IVR
  • Up to 28 Cores with Intel HT Technology
• Chipset: Intel C621
• Memory: 16x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Support up to 2TB ECC 3DS Load Reduced Memory, 512GB ECC/REG Memory
• Slots: 4x PCI-Express 3.0 x16 Slots (Low-profile), 2x PCI-Express 3.0 x8 Slots (Low-profile)
• SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: ASPEED AST2500 BMC Graphics
• LAN: Dual 1GbE LAN with Intel X722
• Drive Bays: 8x Hot-swap 3.5″ SATA drive bays
• Backplane: 2U SAS/SATA backplane
• Ports: 2x USB 3.0 Ports (rear), 4x USB 2.0 Ports (2 front, 2 rear), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 1000W 80 PLUS Titanium Certified Redundant Power Supplies with PMBus
• System Cooling: 3x 80mm Heavy Duty Fans w/ PWM Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status, HDD Activity, Network Activity, System Information (overheat/UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 647.0 x 89.0 mm
• Weight: 35.5 lbs / 16.1 kg
• RoHS Compliant
