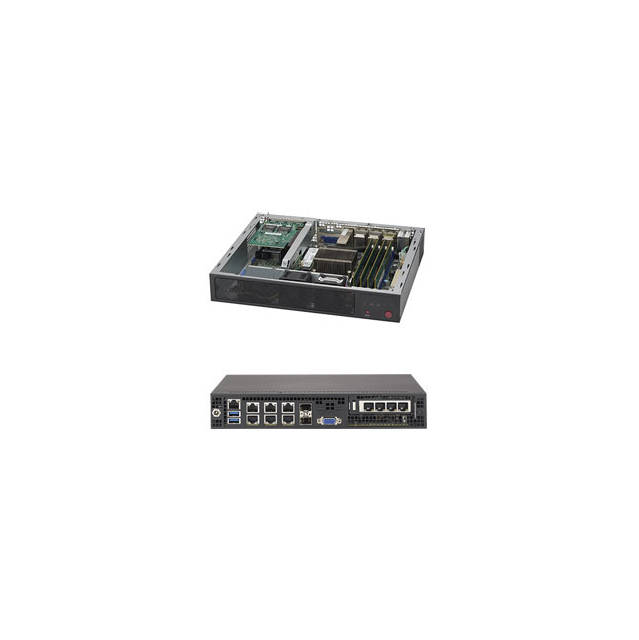

Supermicro SuperServer SYS-E300-8D FCBGA 1667 Mini-1U Server Barebone System (Black)

Name: Supermicro SuperServer SYS-E300-8D FCBGA 1667 Mini-1U Server Barebone System (Black)
SKU: KOAH-SYS-E300-8D
Availability: InStock

Original price was: $1,187.85.Current price is: $916.34.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

1 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-SYS-E300-8D Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: SYS-E300-8D
Motherboard: Super X10SDV-TP8F
Processor: Single socket FCBGA 1667
- Intel Xeon D-1518 Processor (2.2GHz, 6MB Cache, Quad-Core)
- Supports 35W TDP
Chipset: System on Chip
Memory: 4x DDR4-2133/ 1866/ 1600 MHz DIMM Slots, Supports up to 128GB DDR4 ECC/REG Memory or up to 64GB DDR4 ECC/non-ECC Unbuffered Memory
Slots: 1x PCI-Express 3.0 x8 Slot
SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10 RSTe
Graphics: Integrated Aspeed AST2400 BMC Graphics
LAN: Intel i350-AM4 Duad Port and Intel I210 Qual Port 1 Gigabit Ethernet Controllers, Dual 10G SFP+ from D-1500 SoC
Drive Bays: 1x 2.5″ fixed drive bay with bracket (when AOC area is not occupied)
Ports: 2x USB 3.0 ports (rear), 1x VGA Port, 6x RJ45 LAN Ports, 2x 10G SFP+ LAN ports, 1x Dedicated IPMI LAN port
Form Factor: Mini-1U
Power Supply: DC Power Adapter
System Cooling: Passive CPU heat sink and max. 3x 40mm chassis fans
Front Panel:
- Buttons: Power On/Off
- LEDs: Power (Hard drive activity)
Color: Black
Dimensions (WxDxH): 10.0 x 8.9 x 1.7 inch / 254.0 x 226.0 x 43.0 mm
Weight: 3.45 lbs / 1.56 kg
RoHS Compliant
