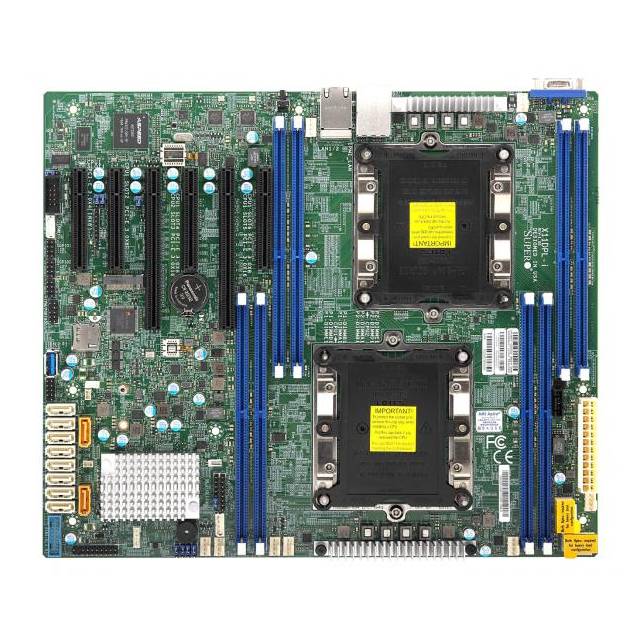

Supermicro X11DPL-I-B Dual LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

Original price was: $740.83.Current price is: $571.50.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

38 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11DPL-I-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X11DPL-I-B
CPU: Dual Socket P LGA3647
- Support Intel Xeon Scalable Processors
- CPU TDP support Up to 140W
- 2 UPI up to 10.4 GT/s
Chipset: Intel C621
Memory: 8x DDR4-2666/ 2400/ 2133 MHz ECC DIMM Slots, Support up to 512GB ECC/REG Memory or up to 1TB ECC/Load Reduced Memory
Slots: 2x PCI-Express 3.0 x16 Slots, 4x PCI-Express 3.0 x8 Slots (one runs at x4)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: Aspeed AST2500 BMC Graphics
LAN: Dual LAN with Lewisburg Marvell 88E1512 PHY
Ports: 3x USB 3.0 Ports (2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x RJ45 Gigabit Ethernet LAN Ports
Form Factor: ATX, 12.076 x 10.150 inch / 30.67 x 25.78 cm
